DTC P2009
›
Notes
DTC P2009: Notes

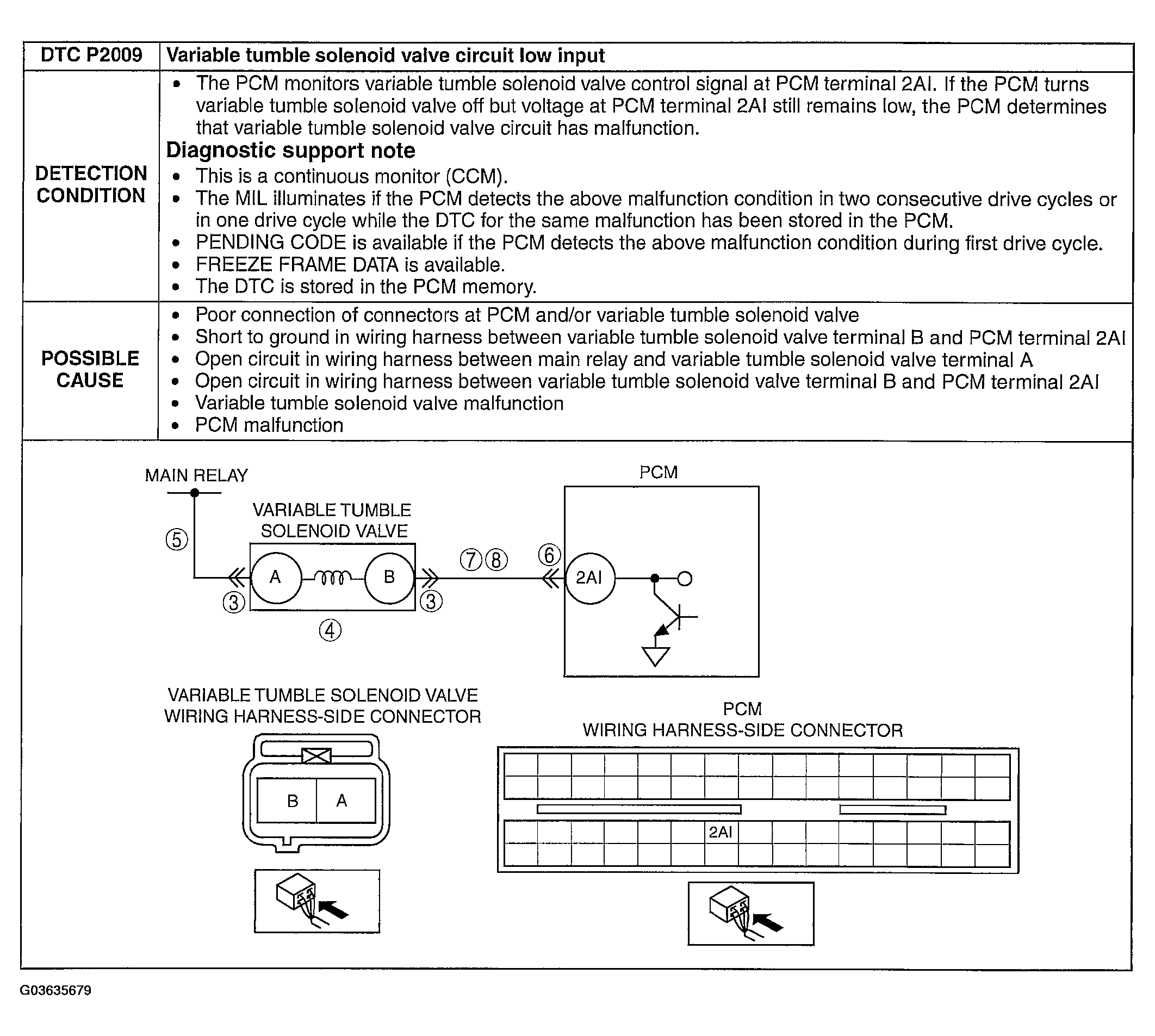

Fig 1: DTC P2009 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
