FixVault
Home
›
Mazda
›
2005
›
3 i, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System]
›
DTC P2502
›
Notes
DTC P2502: Notes

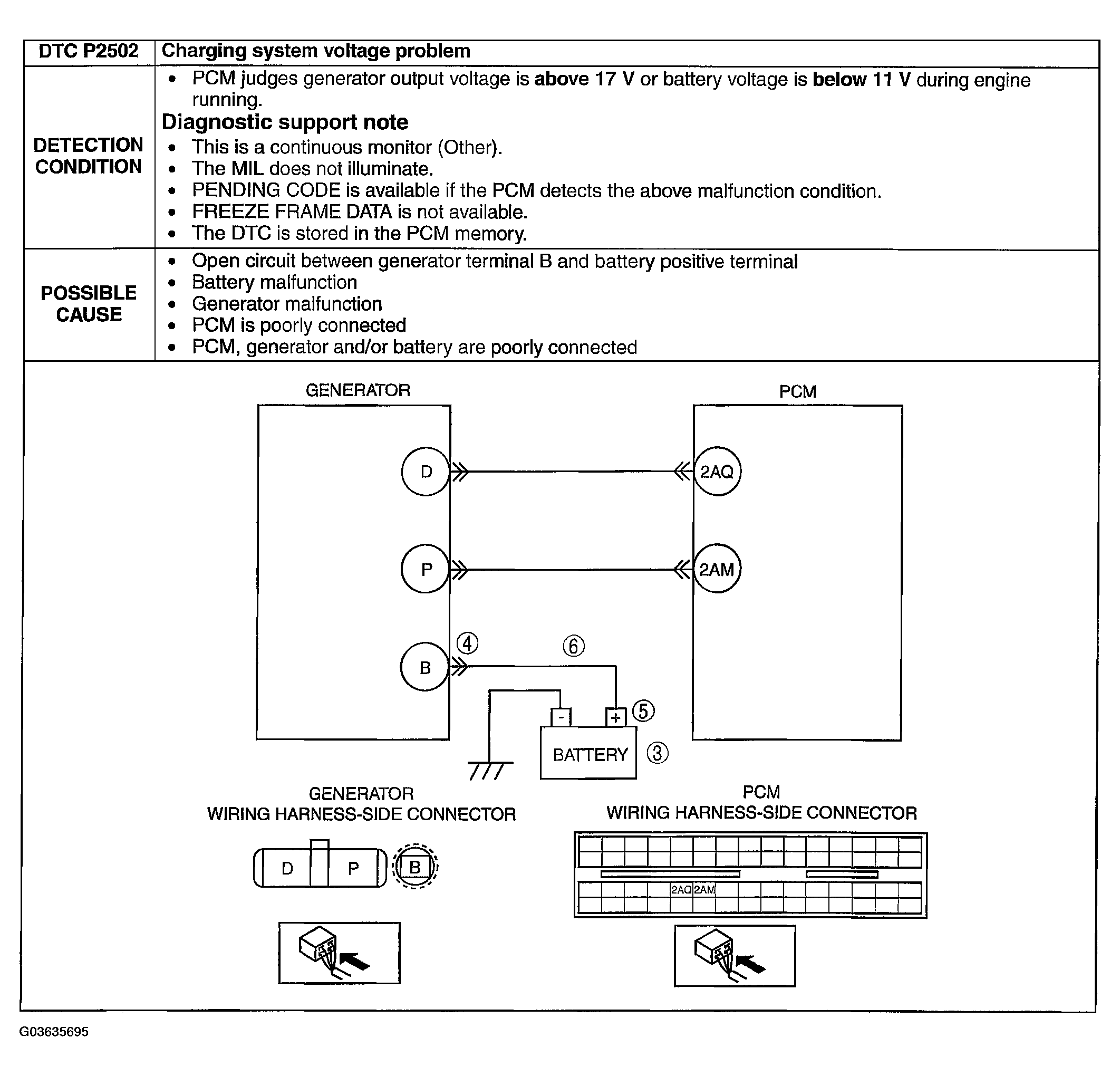

Fig 1: DTC P2502 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
