DTC P2503
›
Notes
DTC P2503: Notes

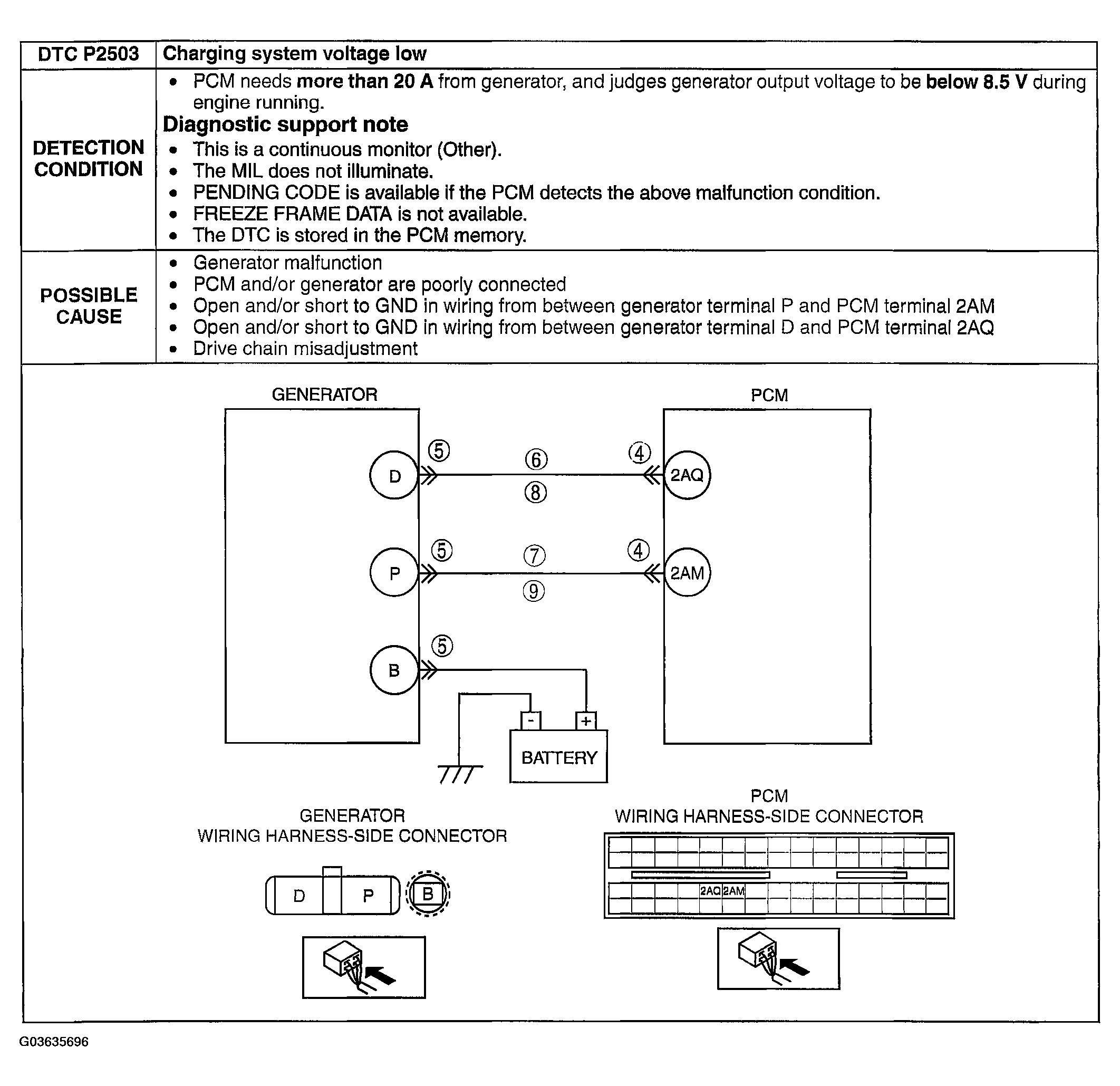

Fig 1: DTC P2503 Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
