On-Board Diagnostic [Engine Control System]
›
Monitoring System And Control System Device Relationship Chart
›
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

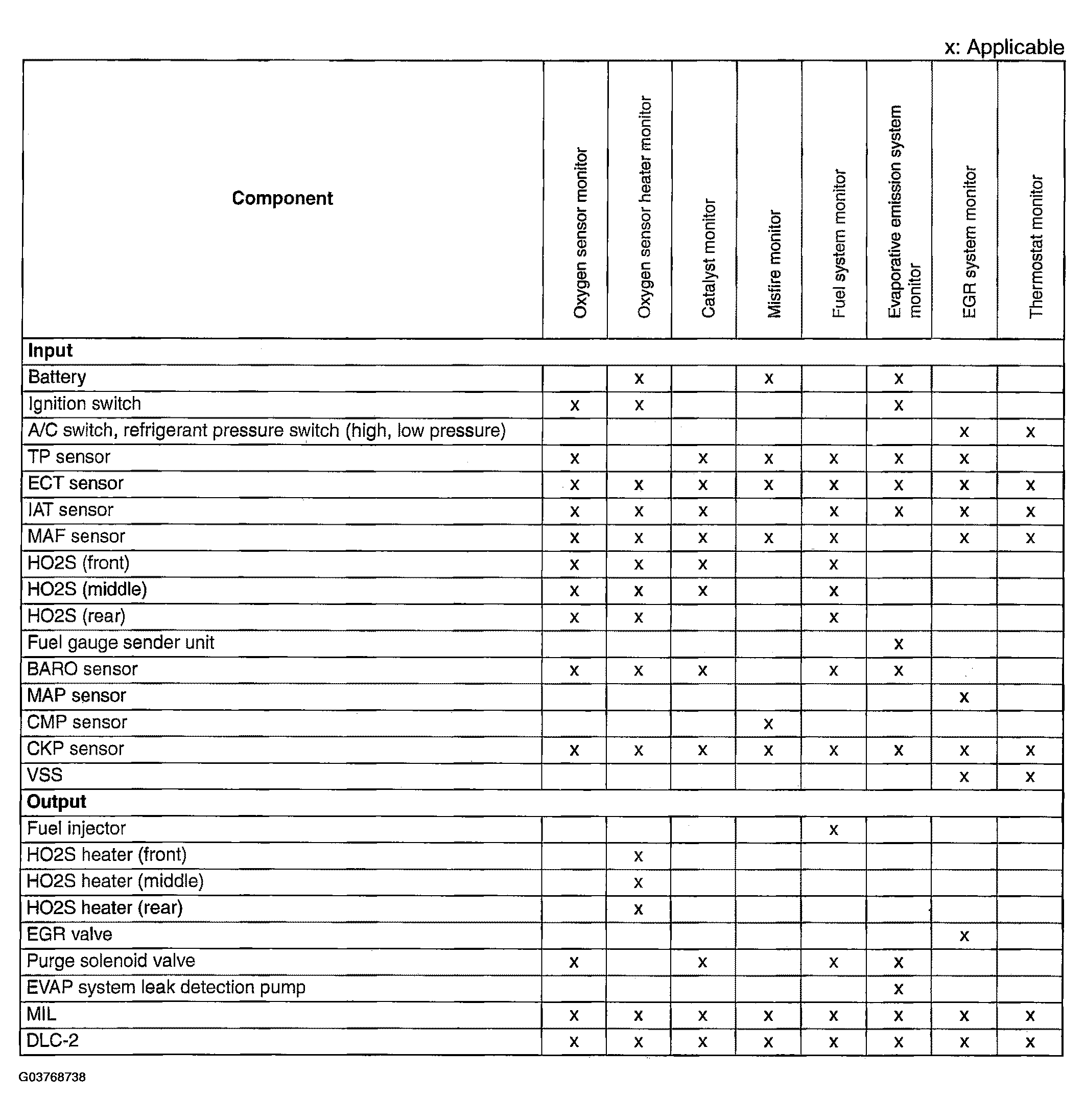

Fig 1: Monitoring System And Control System Device Relationship Chart - California
Courtesy of MAZDA MOTORS CORP.
