Symptom Troubleshooting [Engine]
›
Quick Diagnostic Chart
Quick Diagnostic Chart

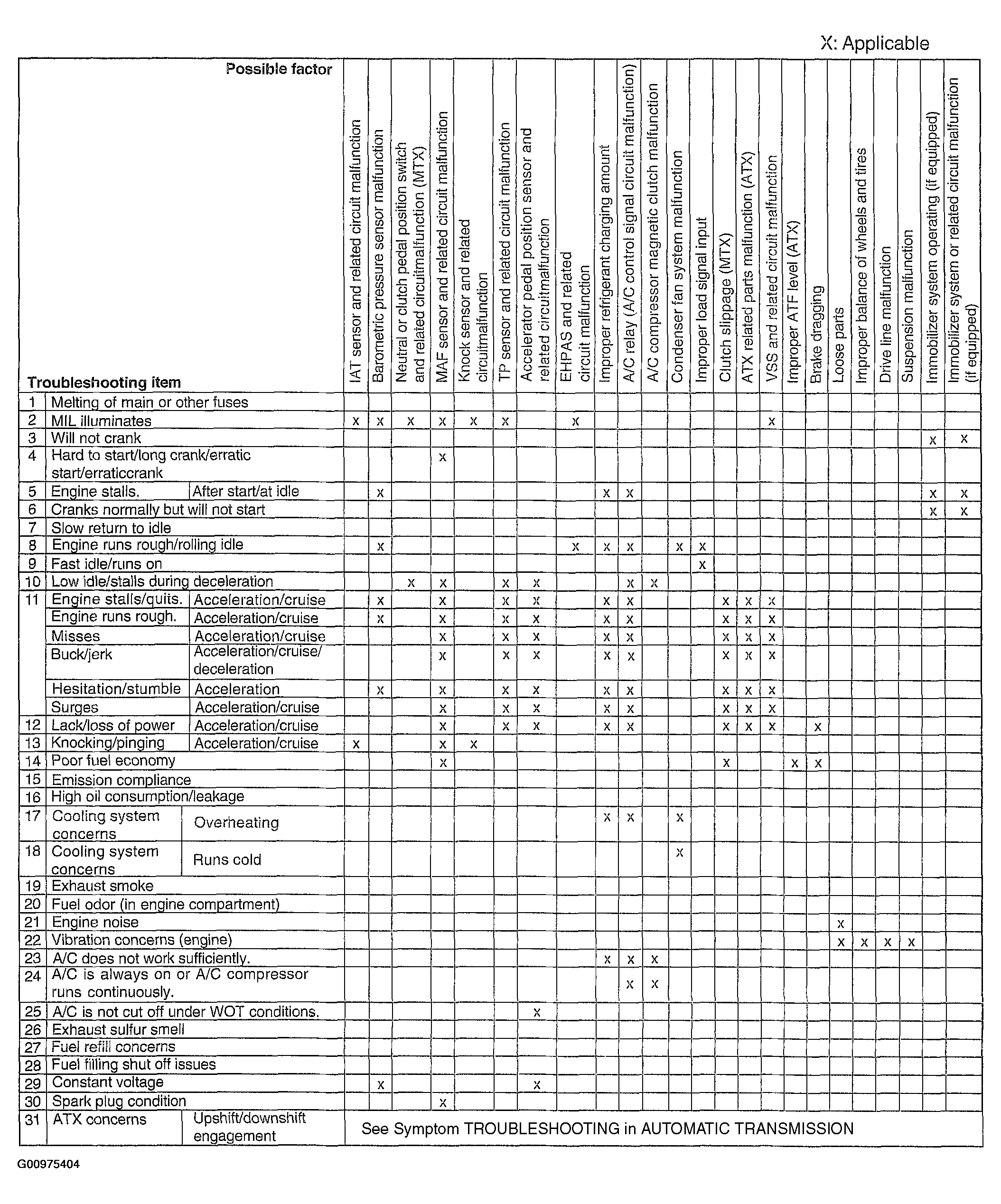

Fig 1: Engine Symptom Troubleshooting - Quick Diagnostic Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

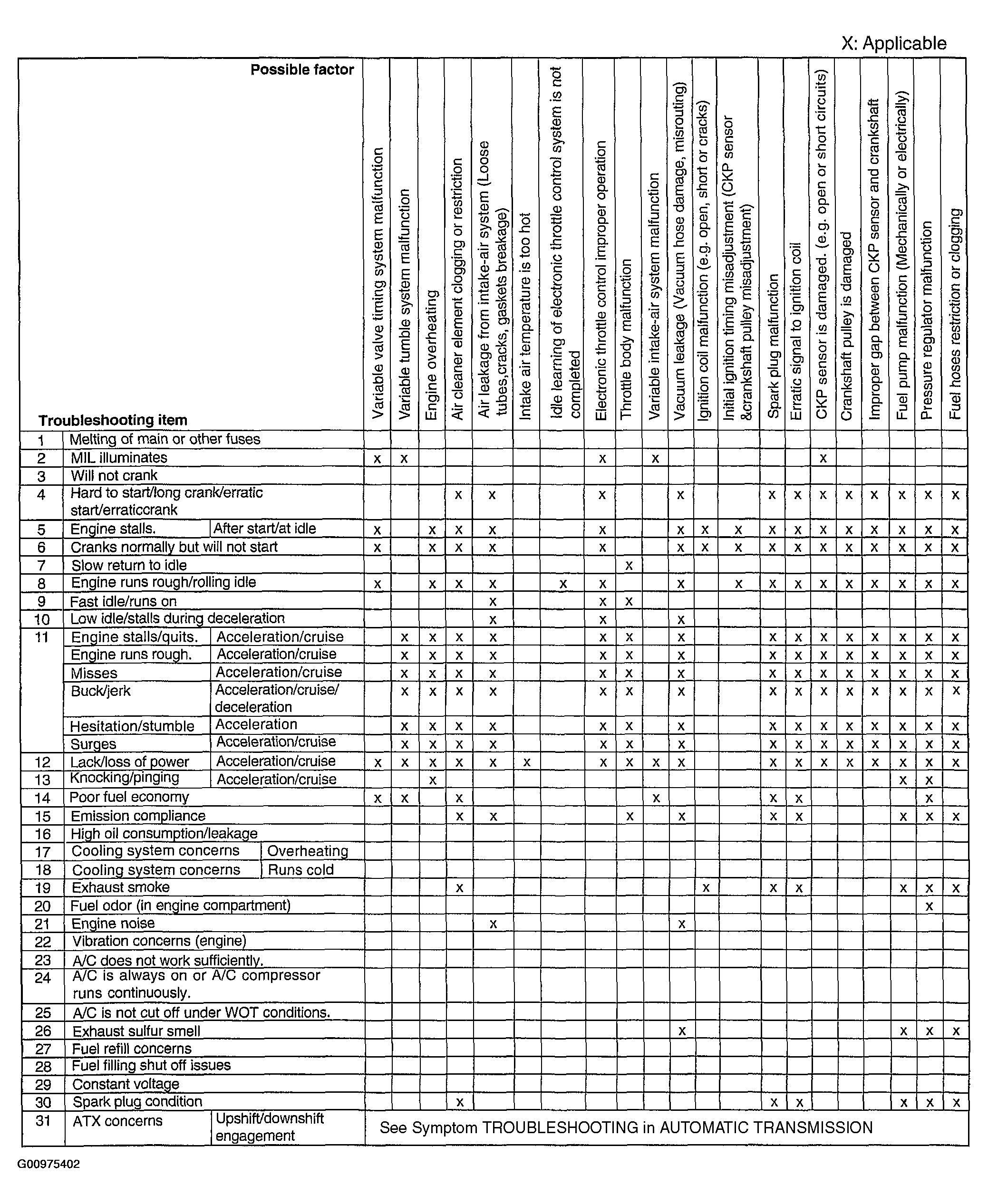

Fig 2: Engine Symptom Troubleshooting - Quick Diagnostic Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

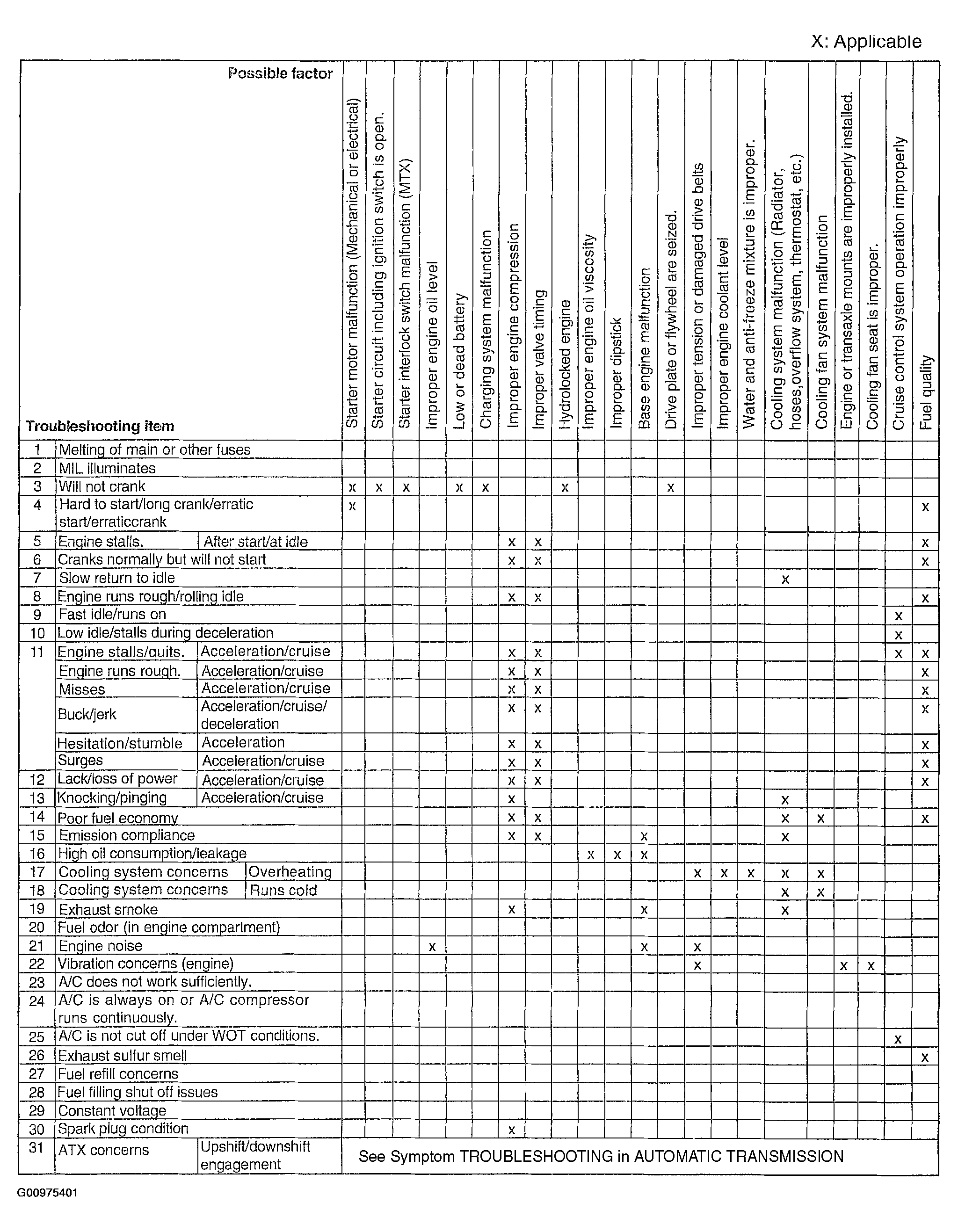

Fig 3: Engine Symptom Troubleshooting - Quick Diagnostic Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

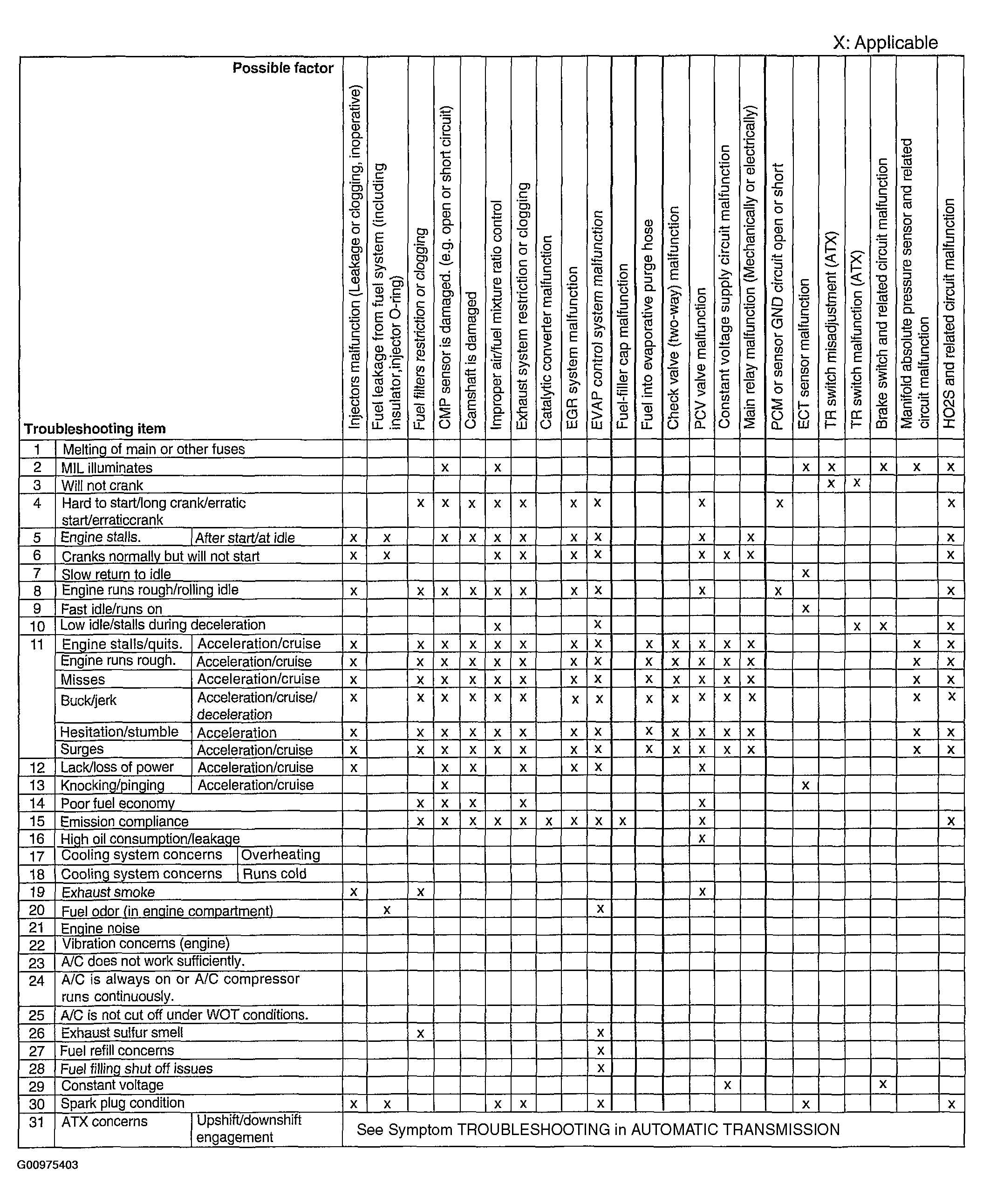

Fig 4: Engine Symptom Troubleshooting - Quick Diagnostic Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
