Ignition Coil Removal/Installation
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the plug hole plate.

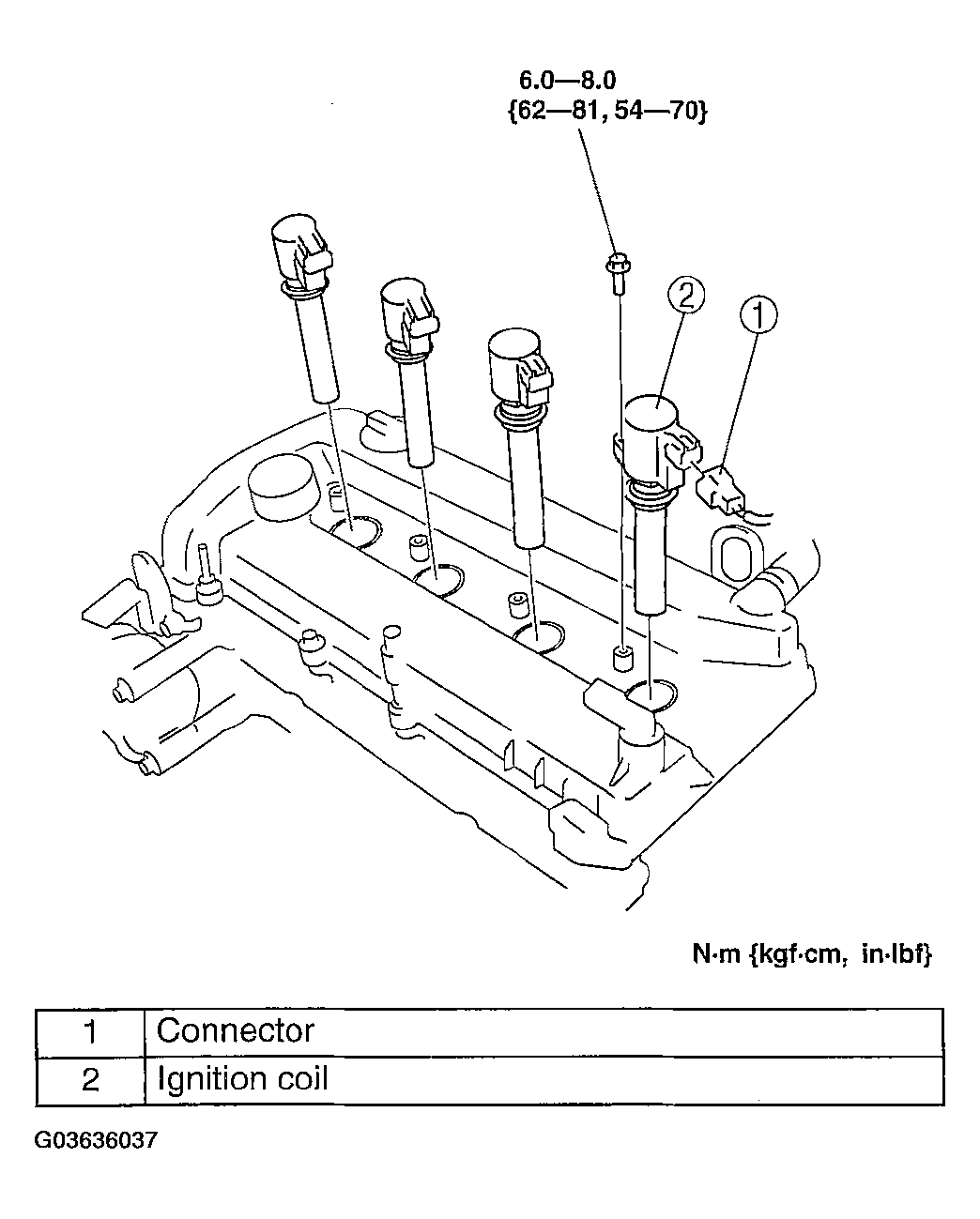

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
