Location Index

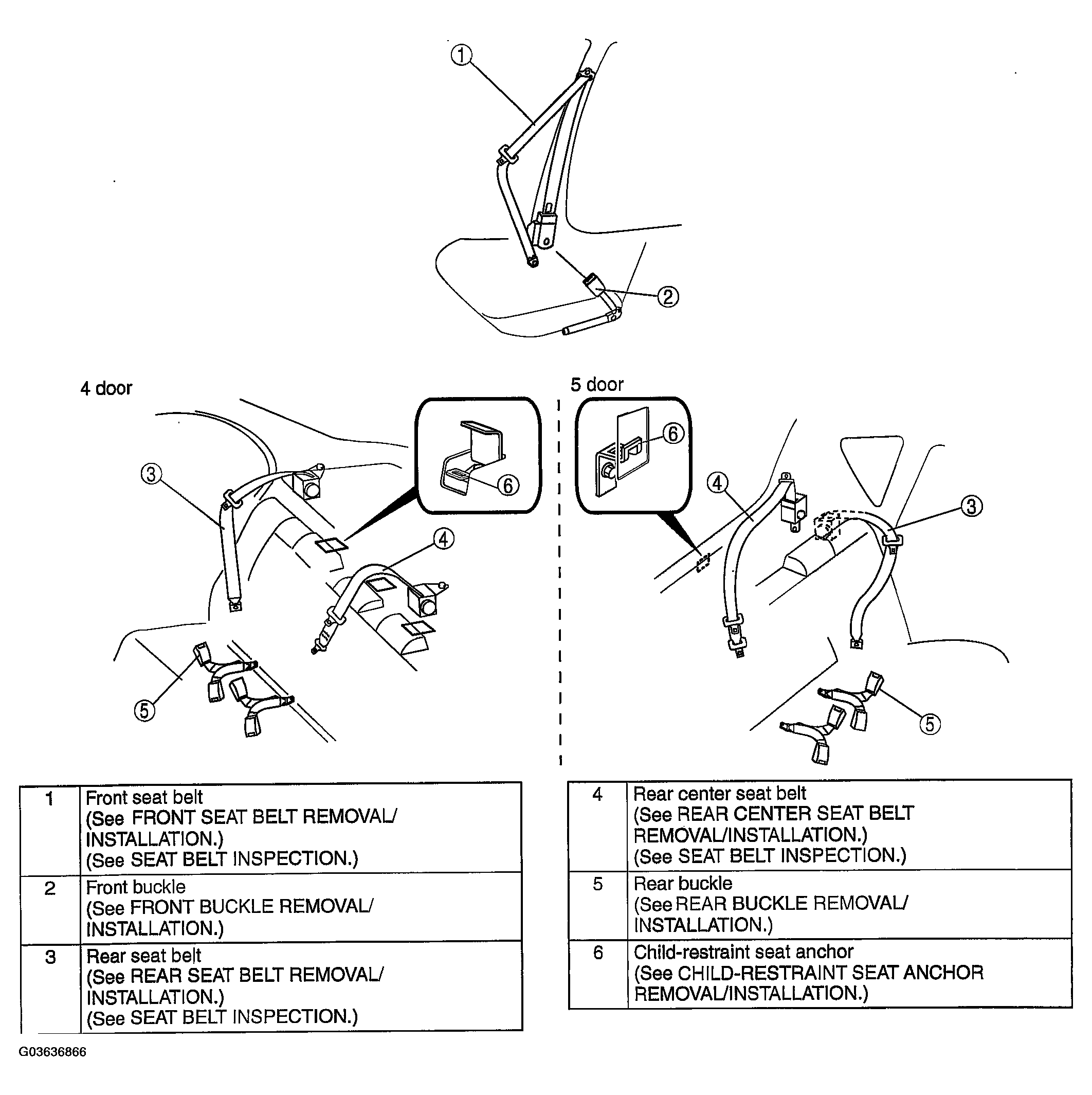

Fig 1: Identifying Seat Belt Component Locations
G03636866Courtesy of MAZDA MOTORS CORP.
