Selector Lever Component Installation Note

Insert the location pin of selector lever component to the hole of the floor.
Tighten the selector lever component installation bolts.
Tightening torque

7.8-10.8 N.m

{80-110 kgf.cm, 69.5-95.4 in.lbf}

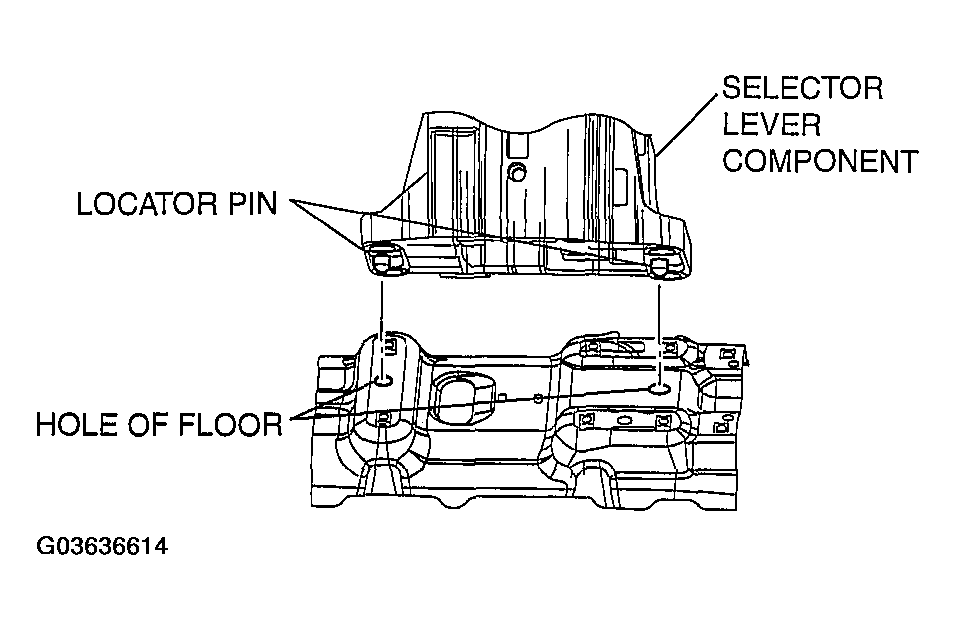

Fig 1: Installing Selector Lever Component
Courtesy of MAZDA MOTORS CORP.
