Selector Lever Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

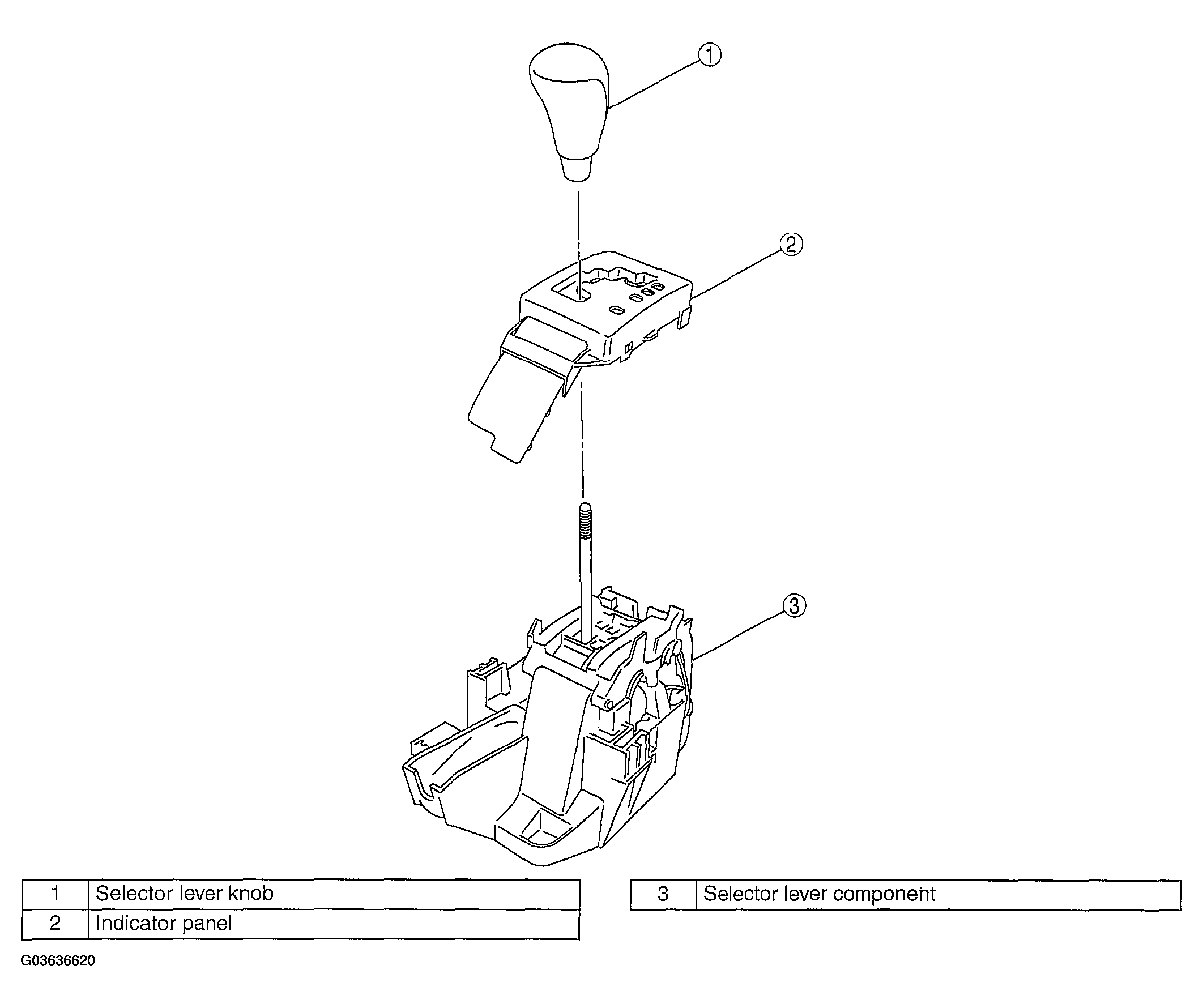

    Fig 1: Selector Lever Disassembly/Assembly
    G03636620Courtesy of MAZDA MOTORS CORP.
