Audio Control Switch Inspection
- Disconnect the negative battery cable.
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
- Disconnect the audio control switch connector.

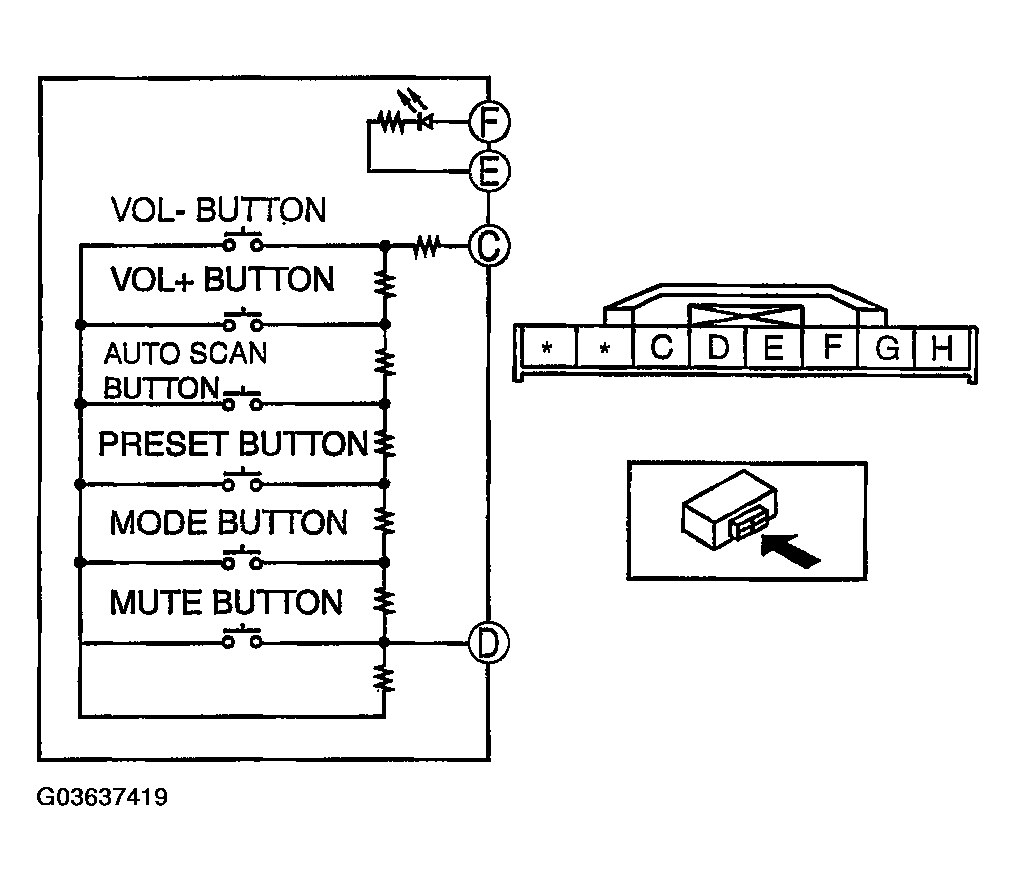

- Verify the resistance and continuity between the audio control switch terminals.
- If the resistance and continuity are not as indicated in the figures, replace the audio control light switch.
AUDIO CONTROL SWITCH RESISTANCE SPECIFICATIONS
| Switch position | Resistance (ohm) |
|---|---|
| VOL- button ON | 51-56 |
| VOL+ button ON | 140-154 |
| AUTO SCAN button ON | 286-315 |
| PRESET button ON | 534-589 |
| MODE button ON | 985-1,080 |
| MUTE button ON | 1,940-2,130 |
| OFF | 4,800-5,290 |
| R: Resistance | |
