Car-Navigation Unit Removal/Installation
- Disconnect the negative battery cable.
- Remove the following parts:
- Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

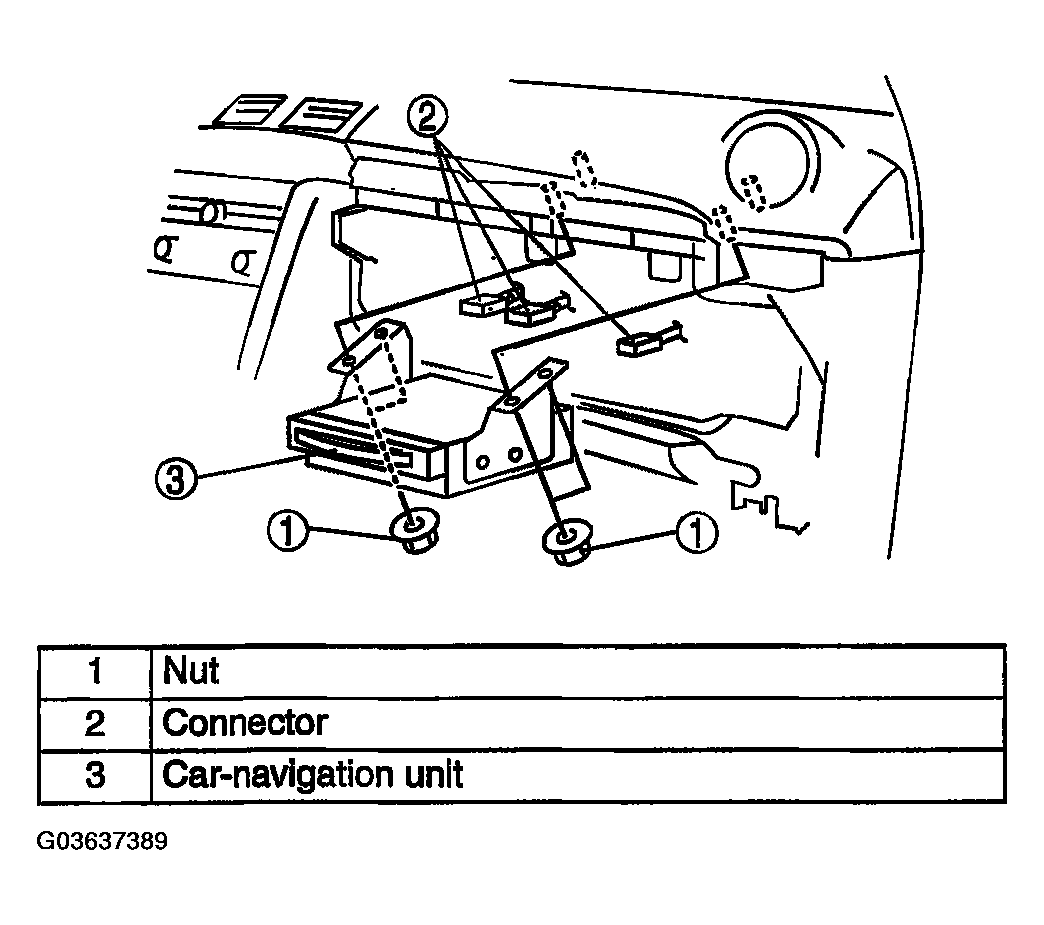

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
