FixVault
Home
›
Mazda
›
2005
›
3 i, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Light Switch Connector End View
Light Switch Connector End View

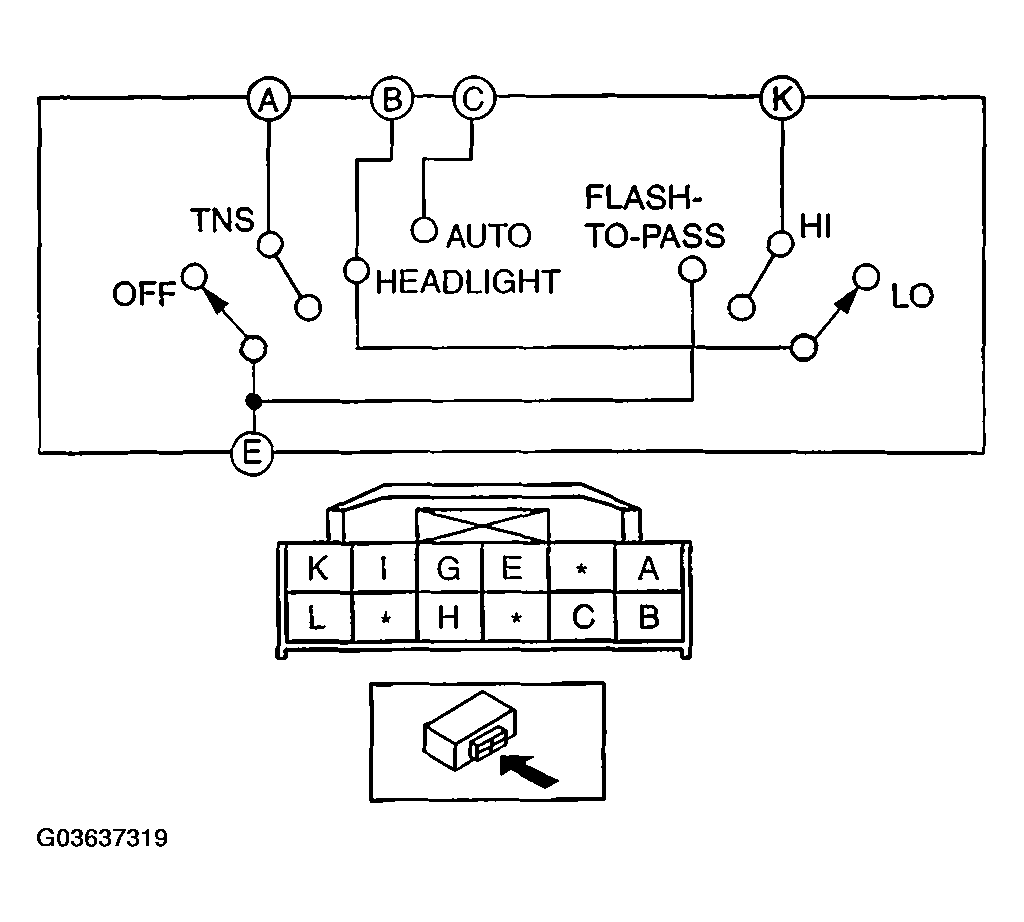

Fig 1: Light Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
