EGR Valve Removal/Installation: Notes

  1. Remove the plug hole plate.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  3. Disconnect the negative battery cable.
  4. Disconnect the EGR valve connector.
  5. Remove in the order indicated in the figure.

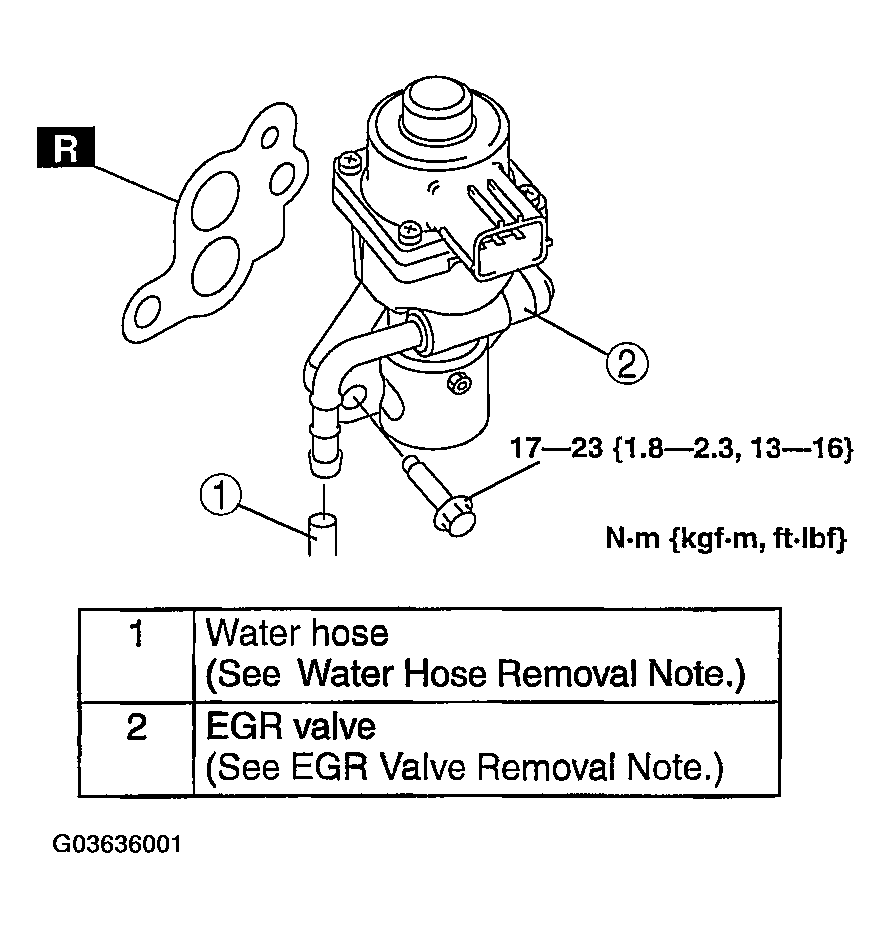

    Fig 1: EGR Valve Removal Sequence
    G03636001Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
