Radiator Removal/Installation: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION )
- Disconnect the negative battery cable.
- Remove the under cover.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT
- Disconnect the coolant reservoir hose from the radiator.
- Position the front wiring harnesses out of the way.

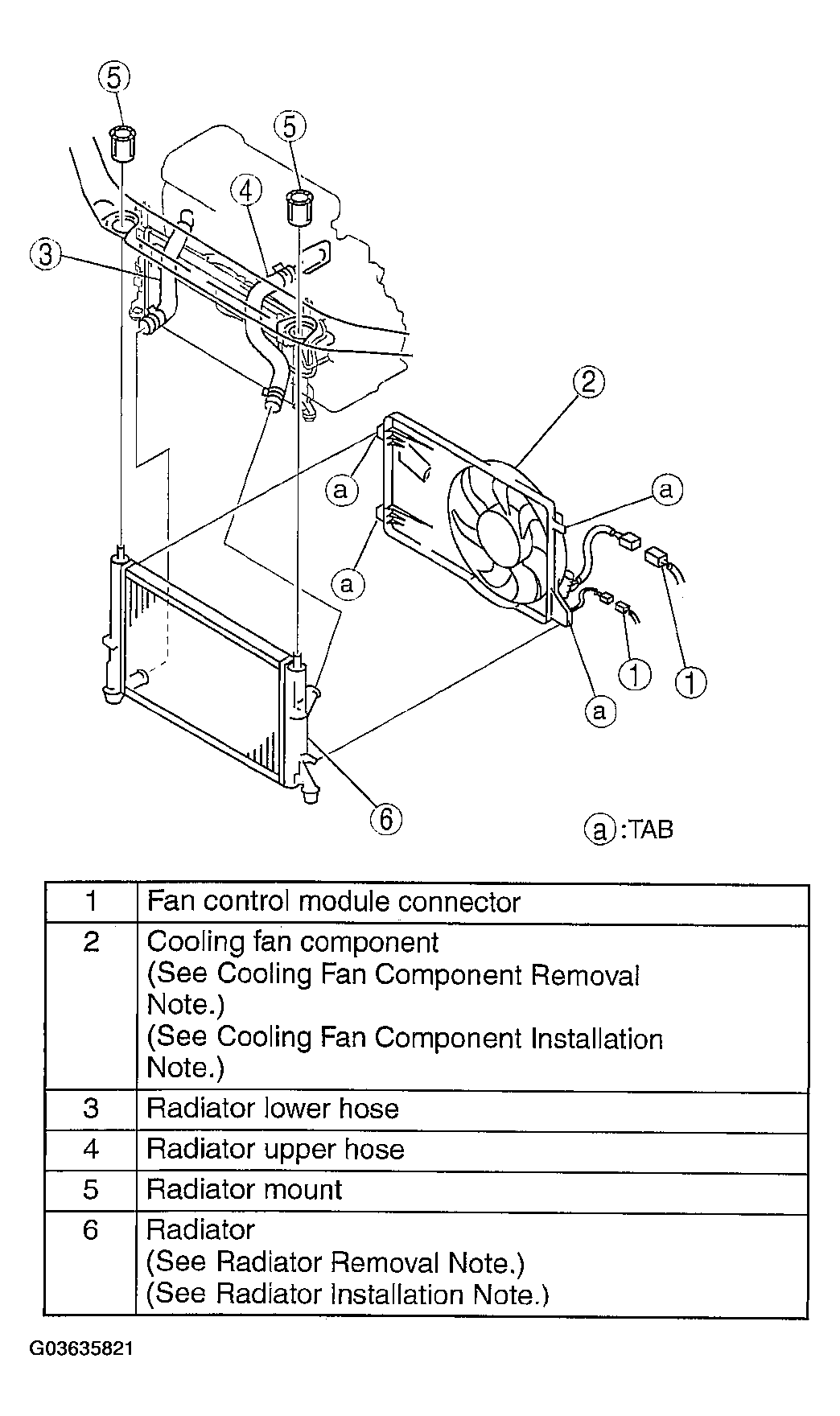

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- Add engine coolant. (See ENGINE COOLANT REPLACEMENT
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION
