Control System Diagram
›
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

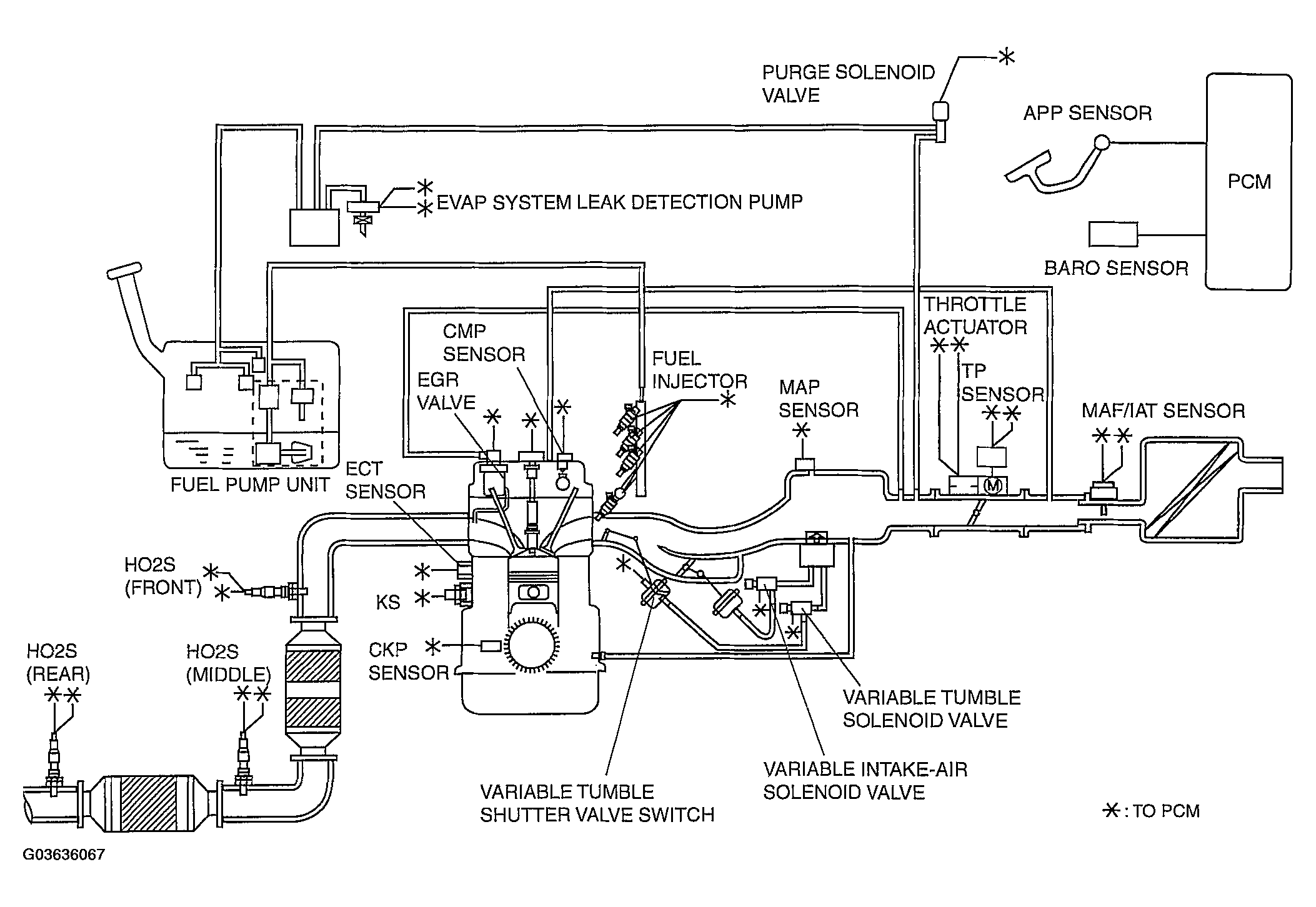

Fig 1: Control System Diagram - California
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
