Control System Location Index

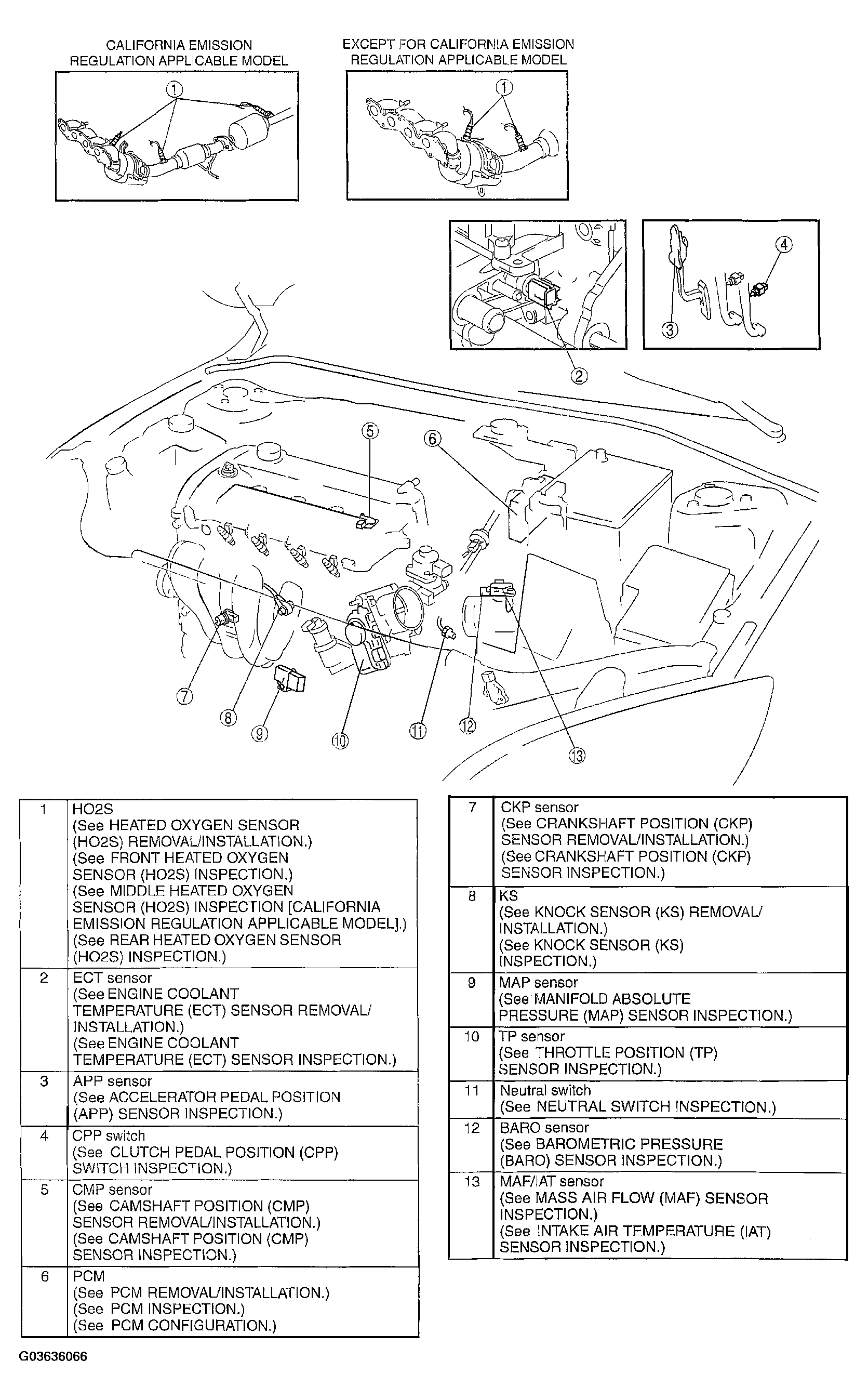

Fig 1: Identifying Control System Component Locations
G03636066Courtesy of MAZDA MOTORS CORP.
