Audio Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the figure.
  5. Install in the reverse order of removal.

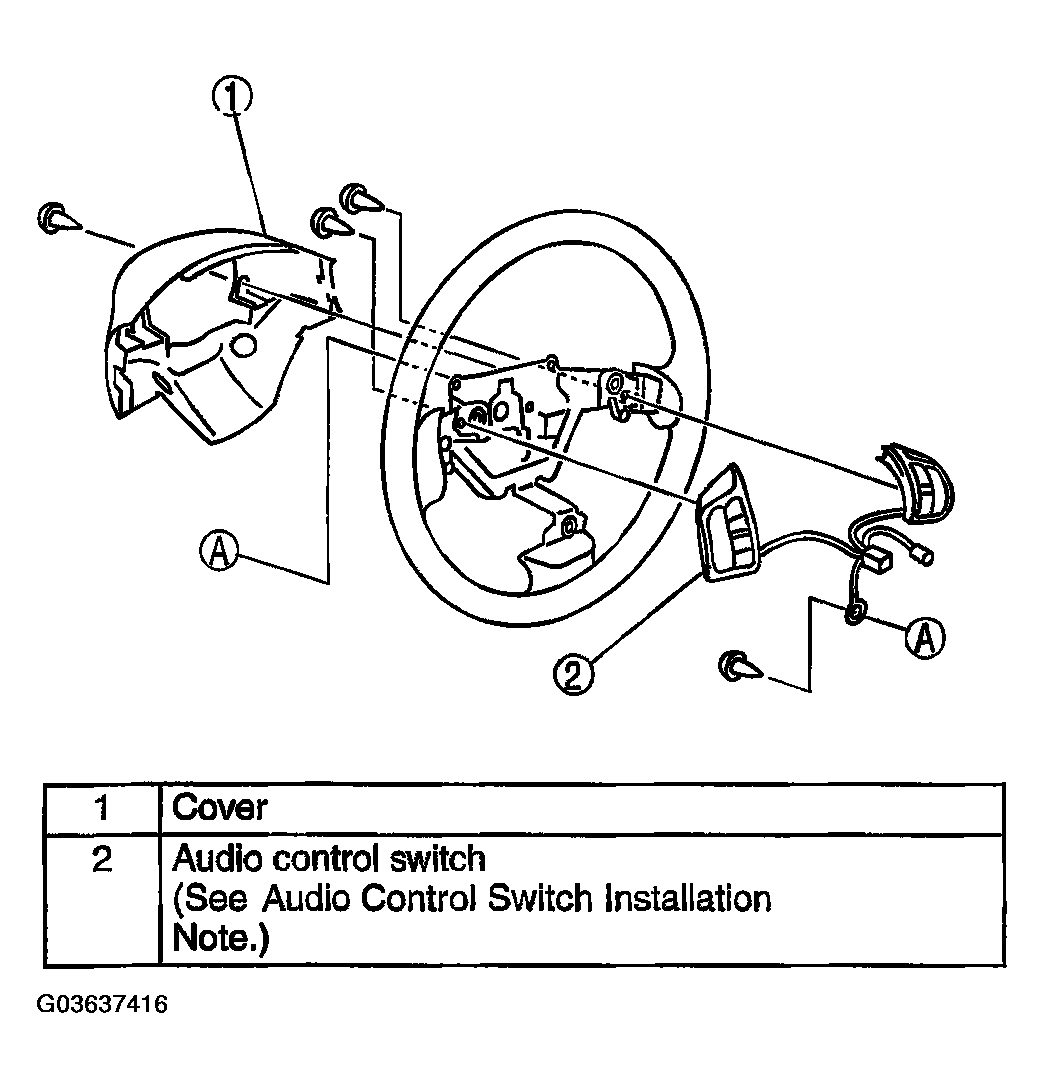

    6. Fig 1: Audio Control Switch Removal/Installation
    G03637416Courtesy of MAZDA MOTORS CORP.
