Control System Component Location Index

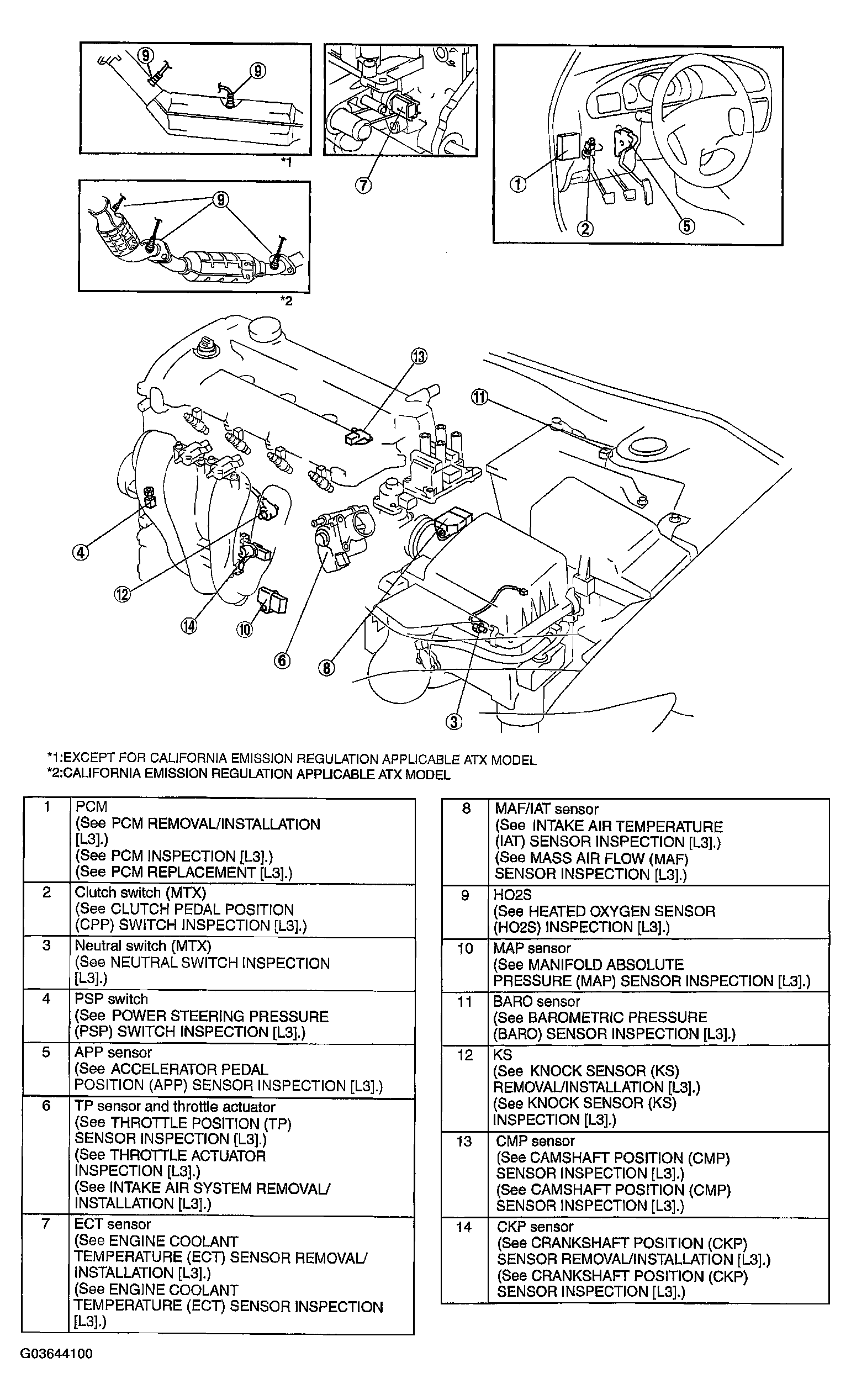

Fig 1: Identifying Component Location Of Control System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
