6 i, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (L3)
›
Control System Diagram
›
Except for California emission regulation applicable ATX model
Except for California emission regulation applicable ATX model

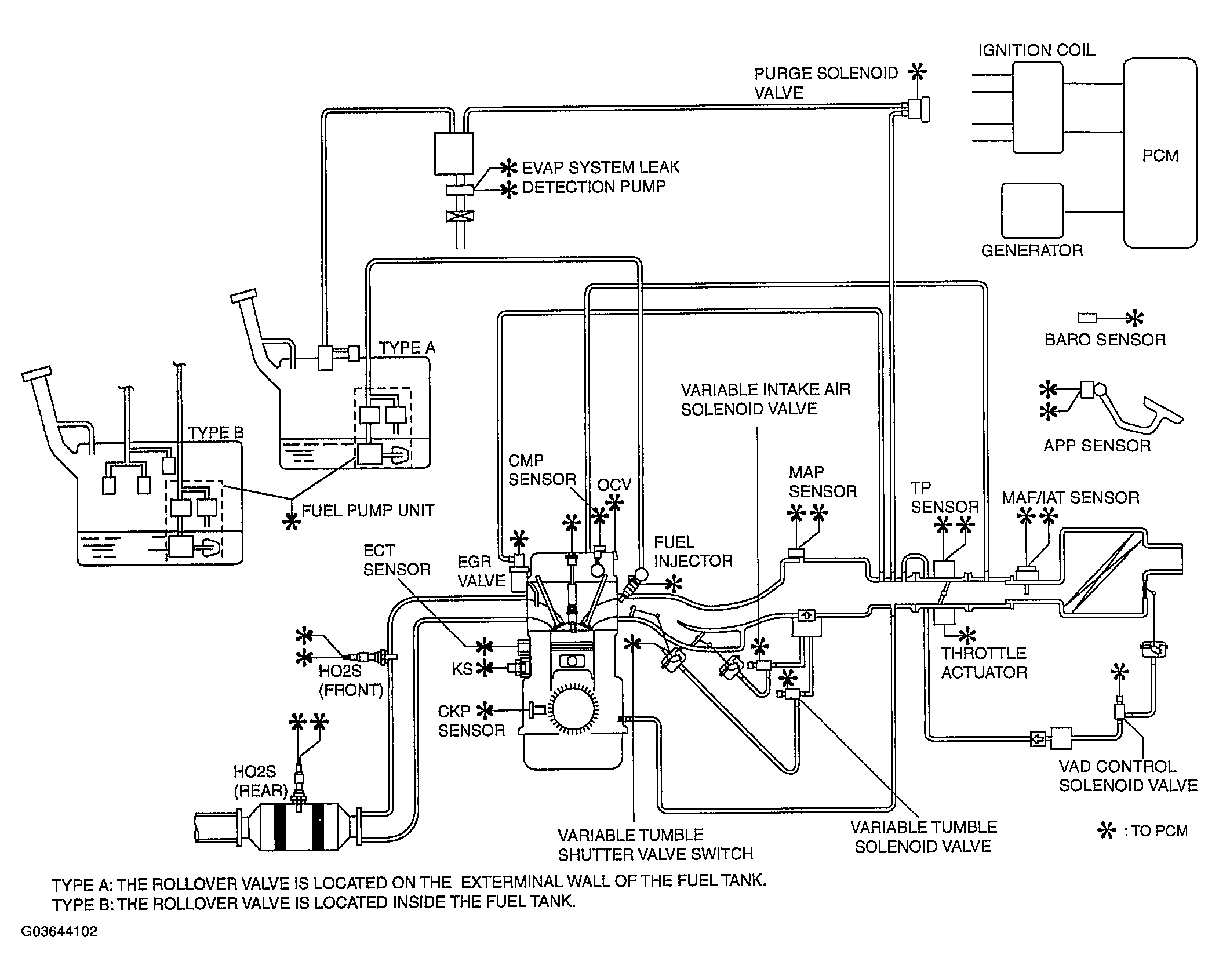

Fig 1: Control System Diagram [L3] (Except California Emission Regulation Applicable ATX Model)
