Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (L3)
›
Control System Wiring Diagram
›
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model

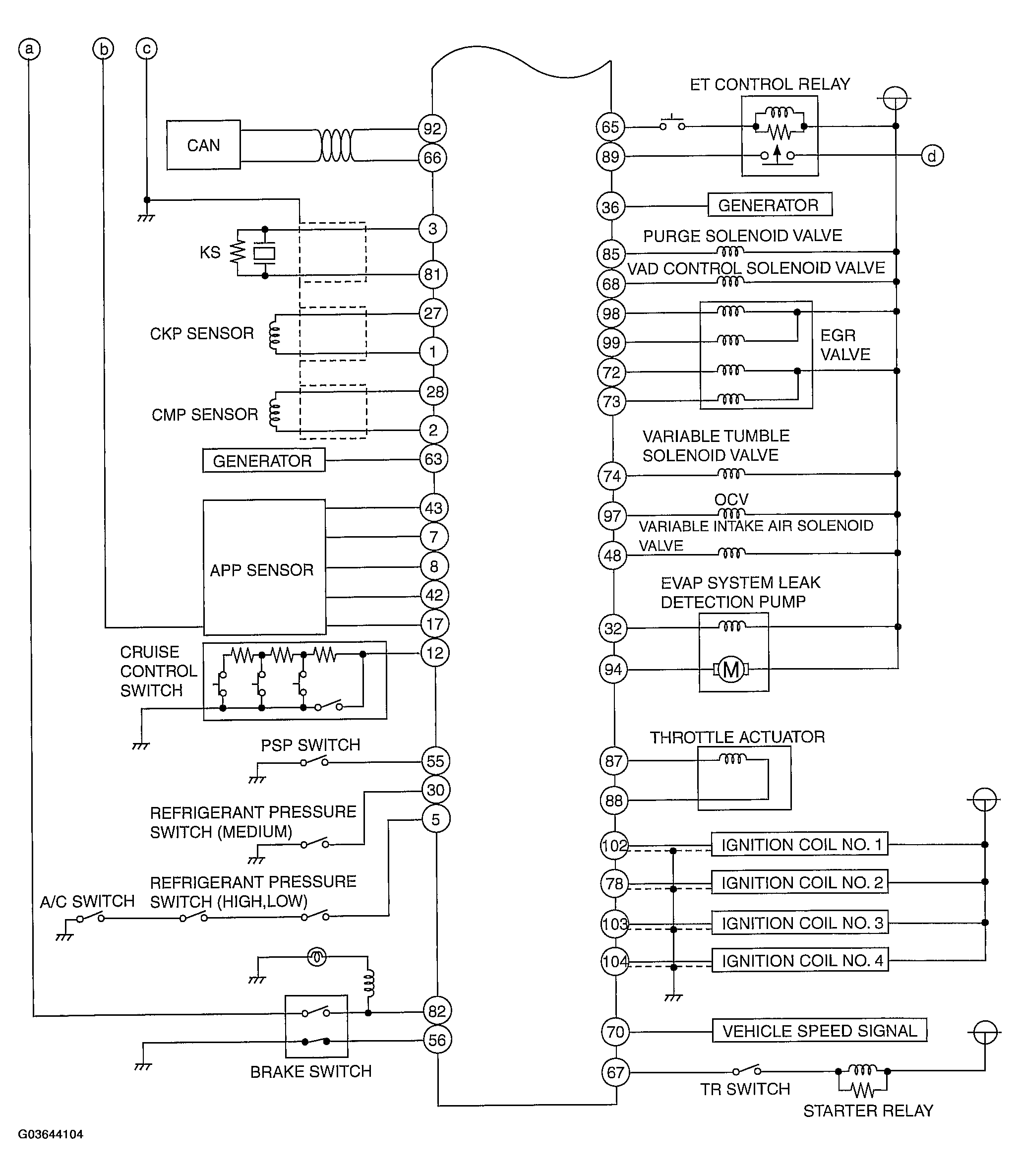

Fig 1: Control System Wiring Diagram [L3] (California Emission Regulation Applicable ATX Model) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

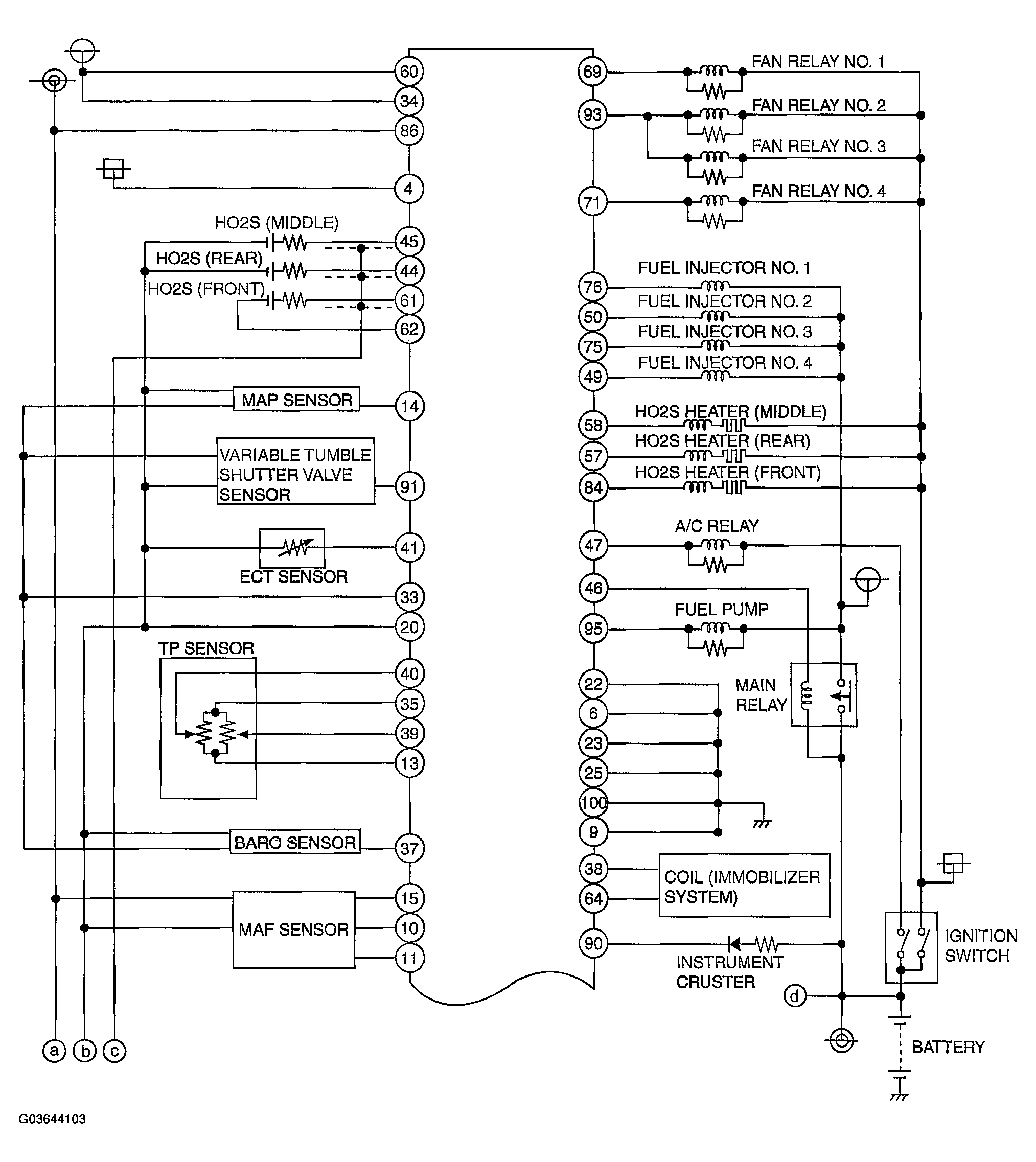

Fig 2: Control System Wiring Diagram [L3] (California Emission Regulation Applicable ATX Model) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
