Symptom Troubleshooting (Engine Control System L3)
›
Quick Diagnostic Chart
Quick Diagnostic Chart

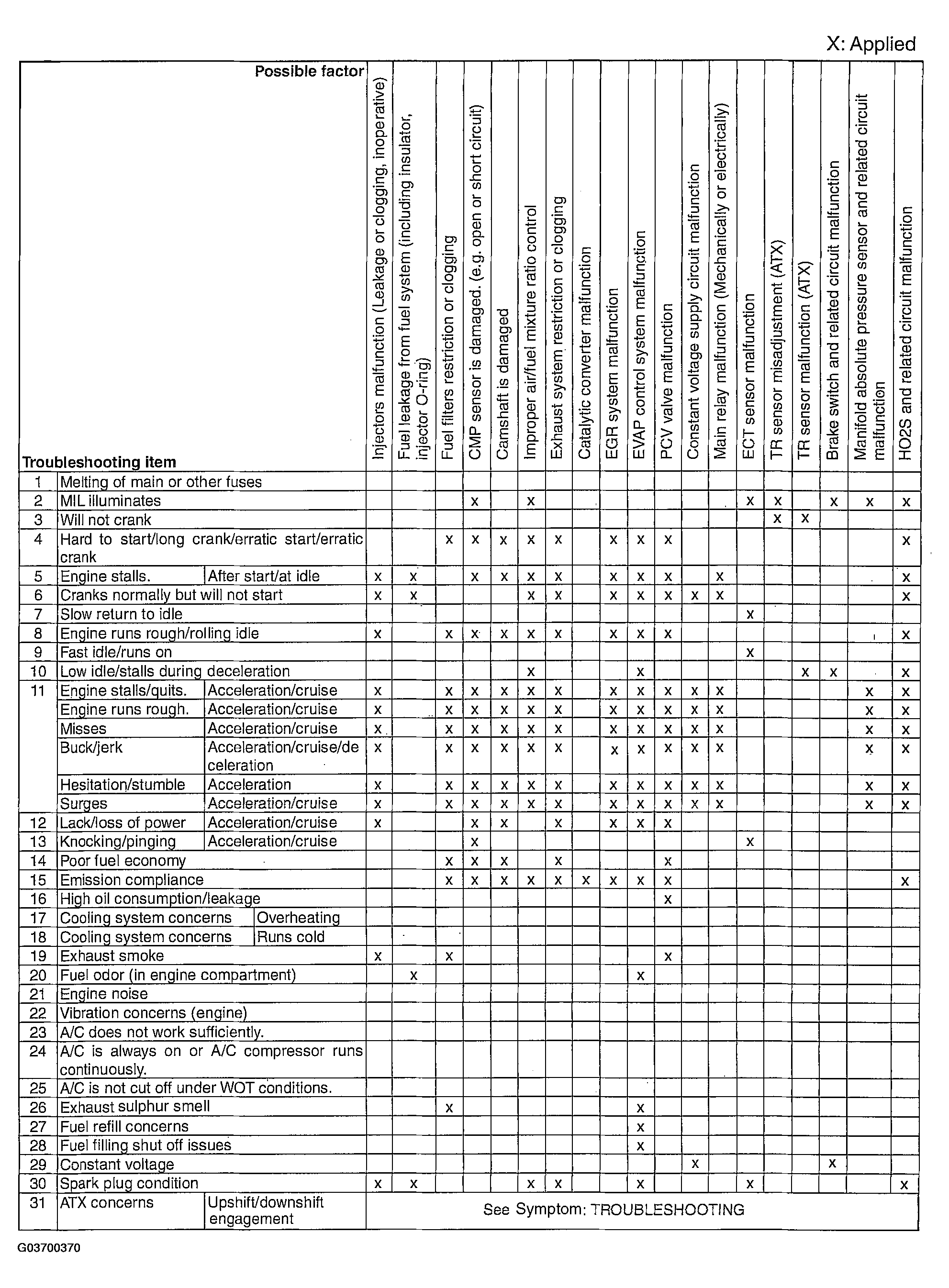

Fig 1: Quick Diagnostic Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

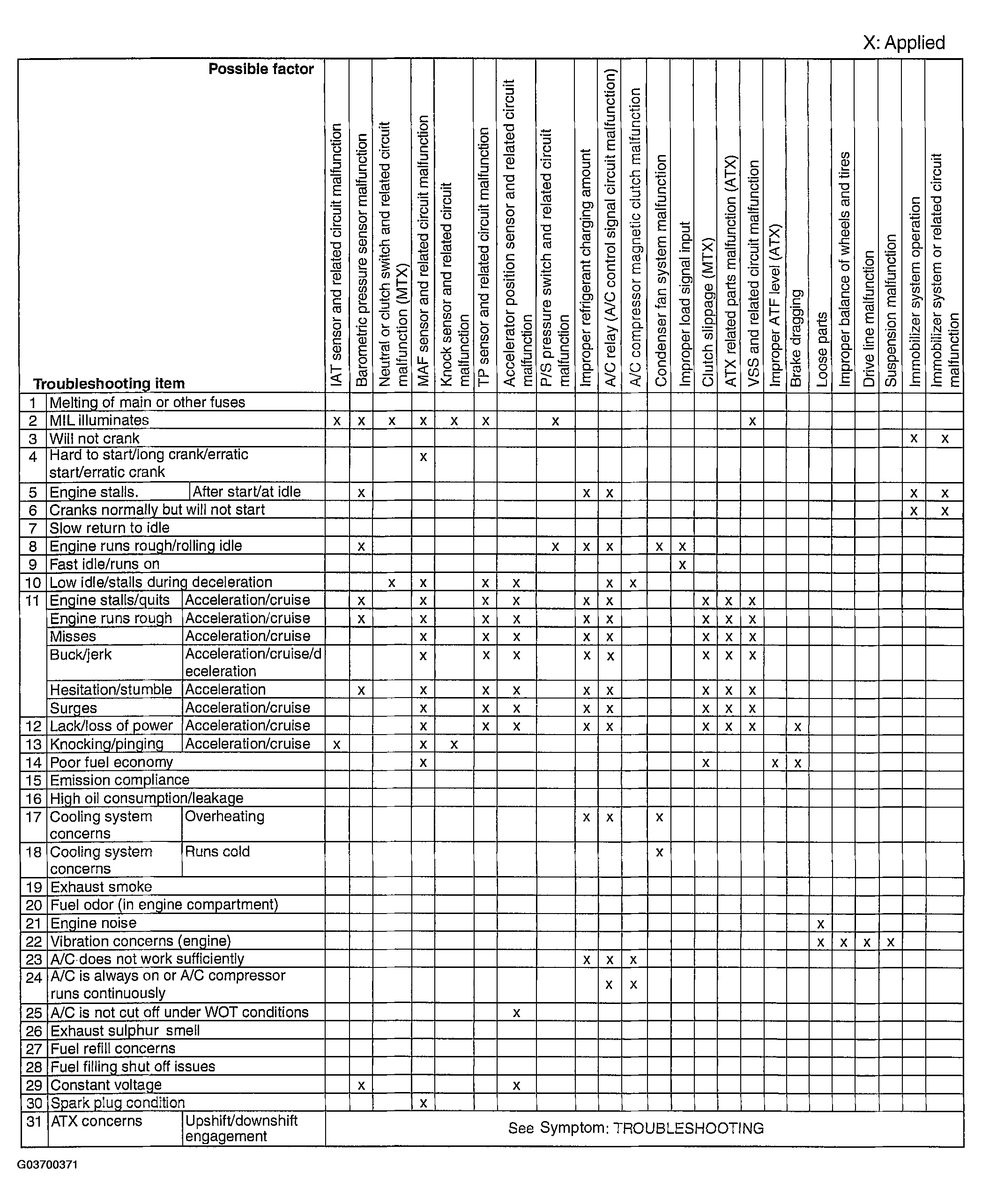

Fig 2: Quick Diagnostic Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

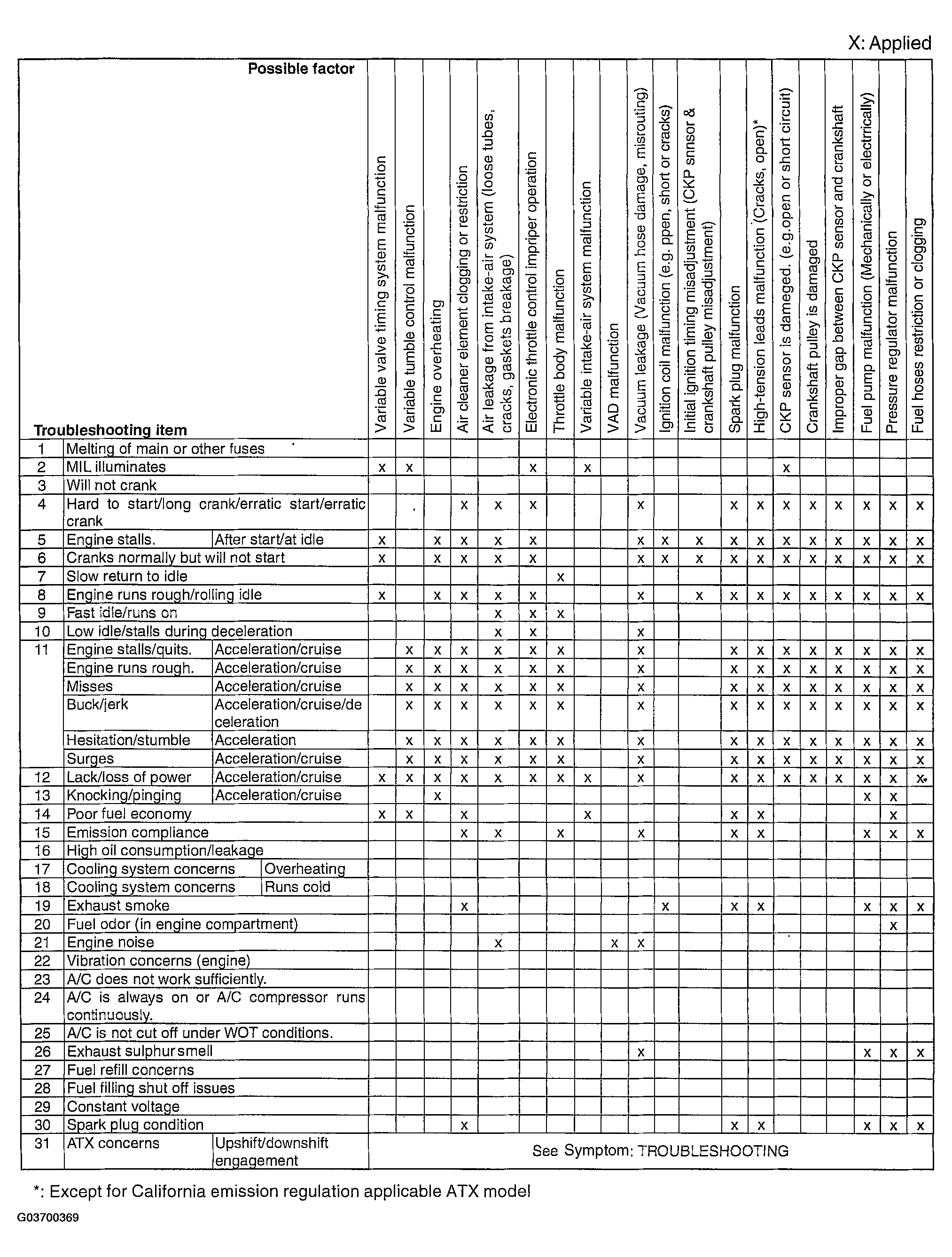

Fig 4: Quick Diagnostic Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
