DTC P0117
›
Notes
DTC P0117: Notes

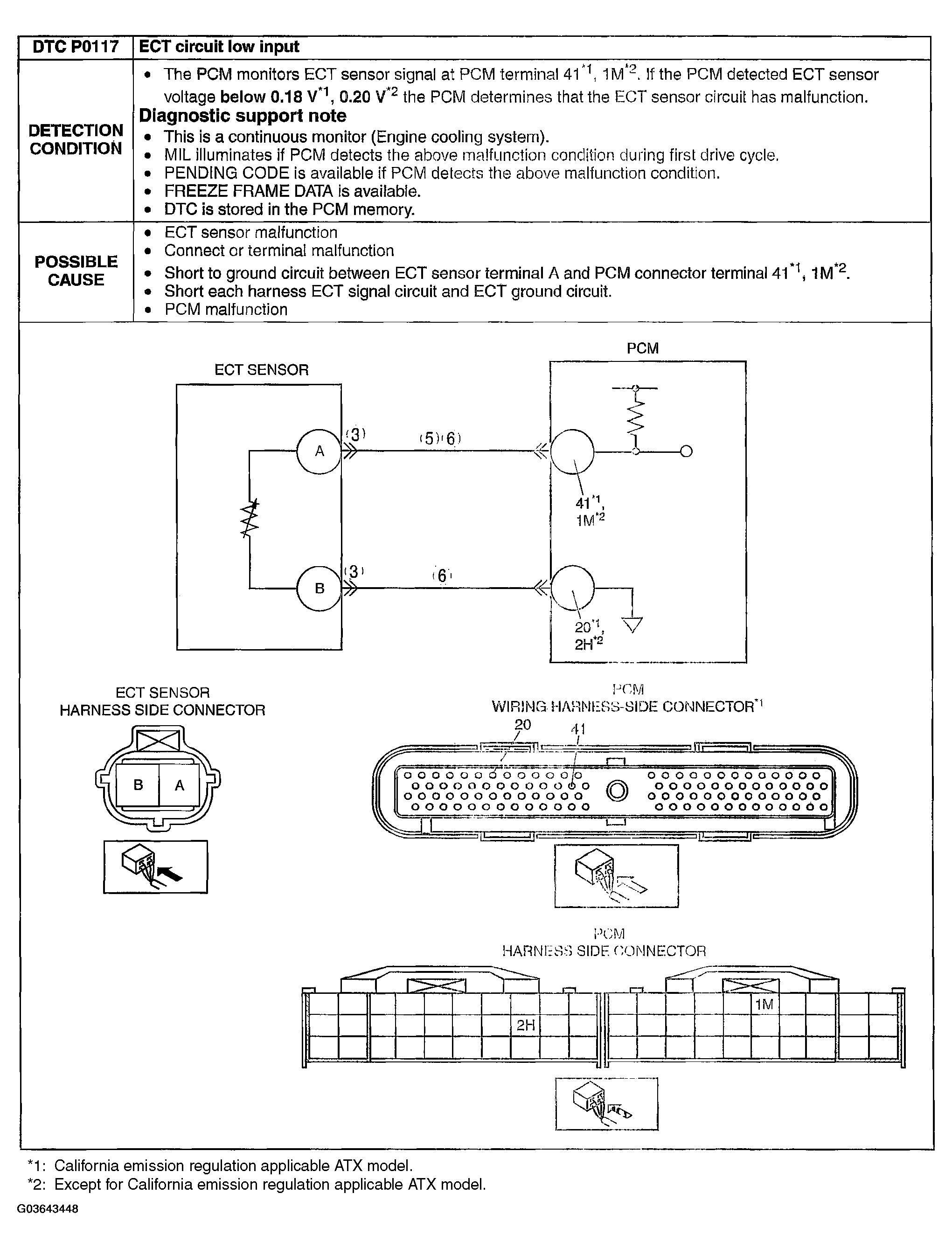

Fig 1: DTC P0117 [L3] Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
