DTC P0506
›
Notes
DTC P0506: Notes

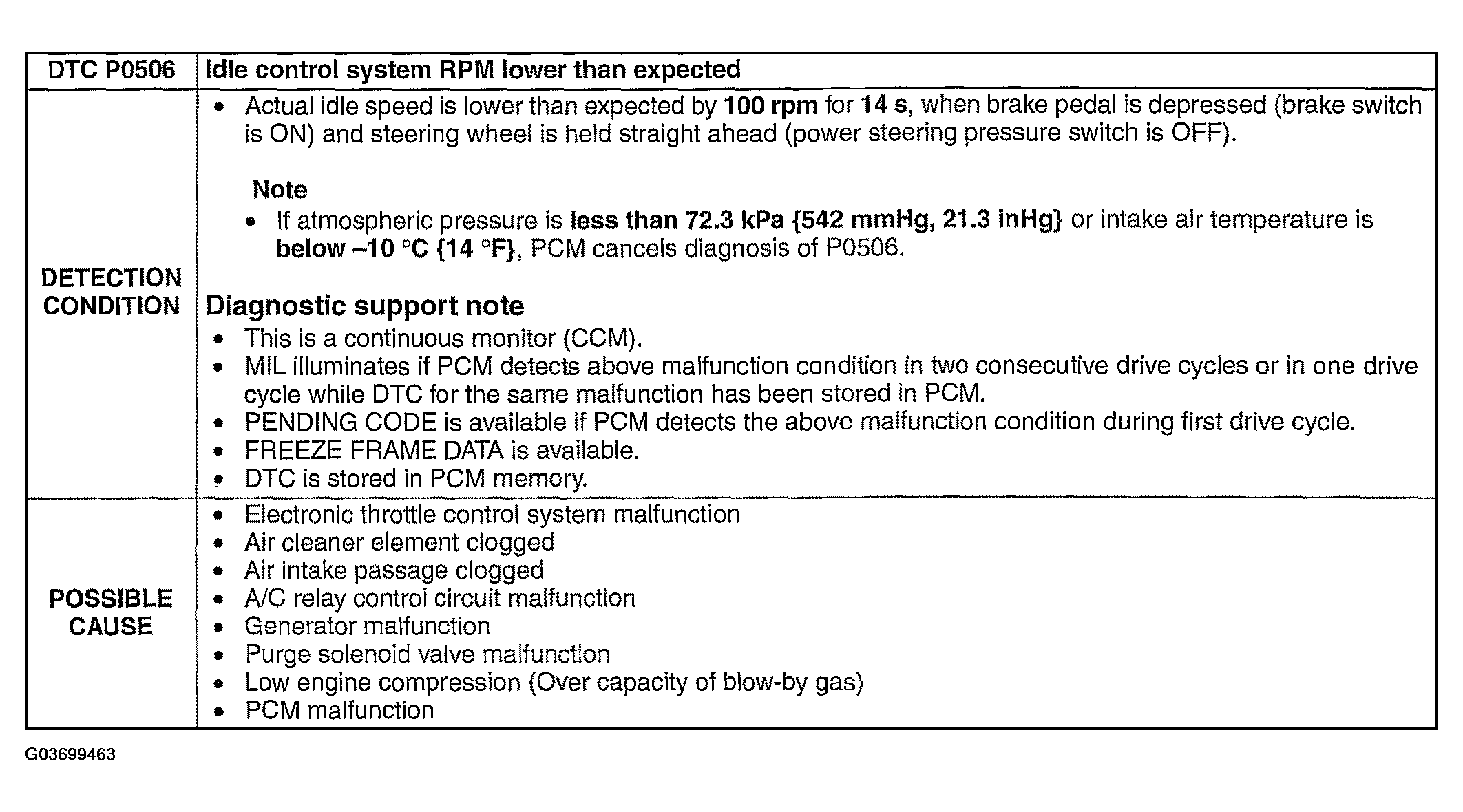

Fig 1: DTC P0506 [L3] Detection Condition & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
