FixVault
Home
›
Mazda
›
2005
›
6 i, 4D Hatchback, Standard
›
Repair and Diagnosis (Single Page)
›
Engine Performance
›
System
›
On-Board Diagnostic (Engine Control System (L3)
›
DTC P2009
›
Notes
DTC P2009: Notes

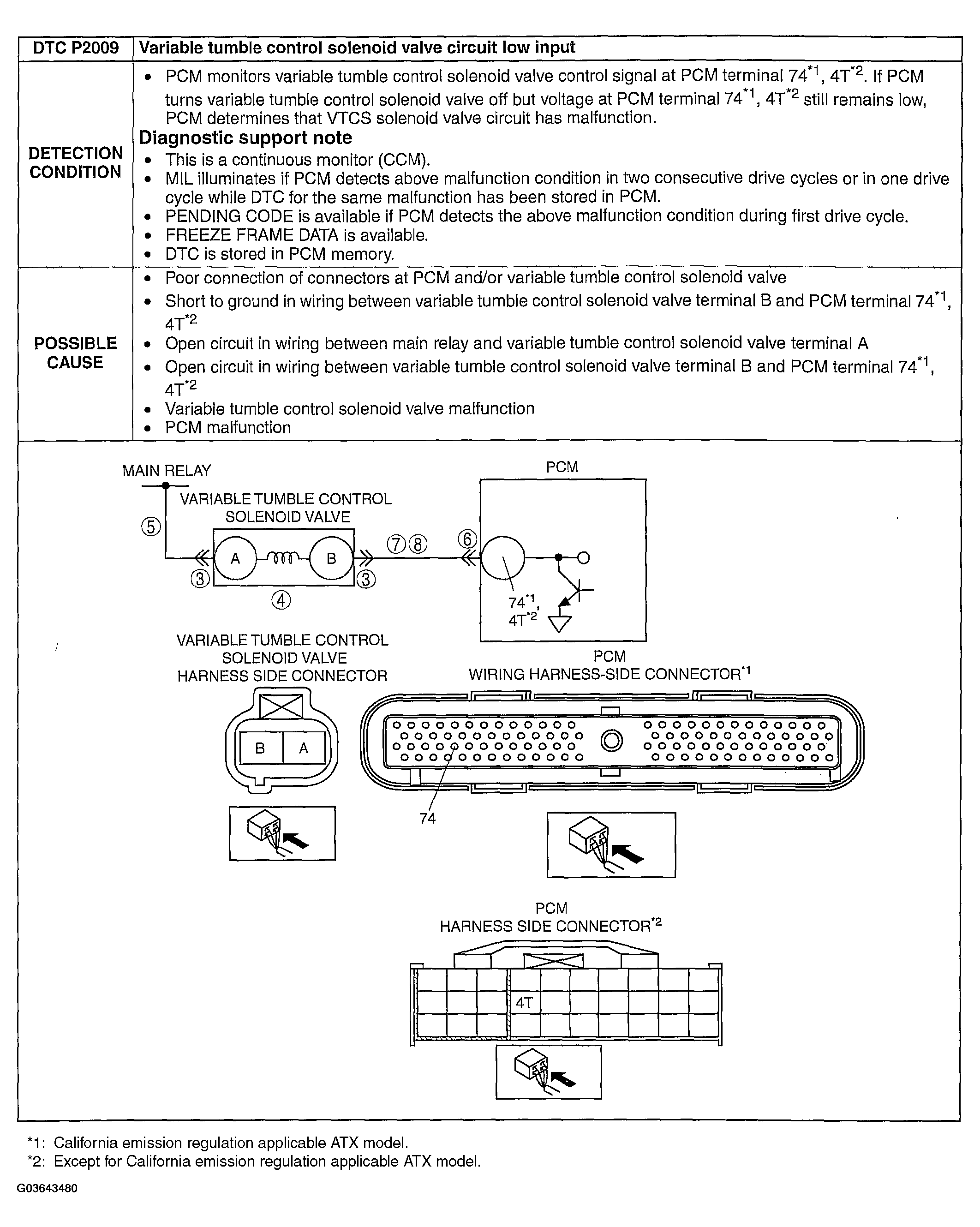

Fig 1: DTC P2009 [L3] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
