DTC P2504
›
Notes
DTC P2504: Notes

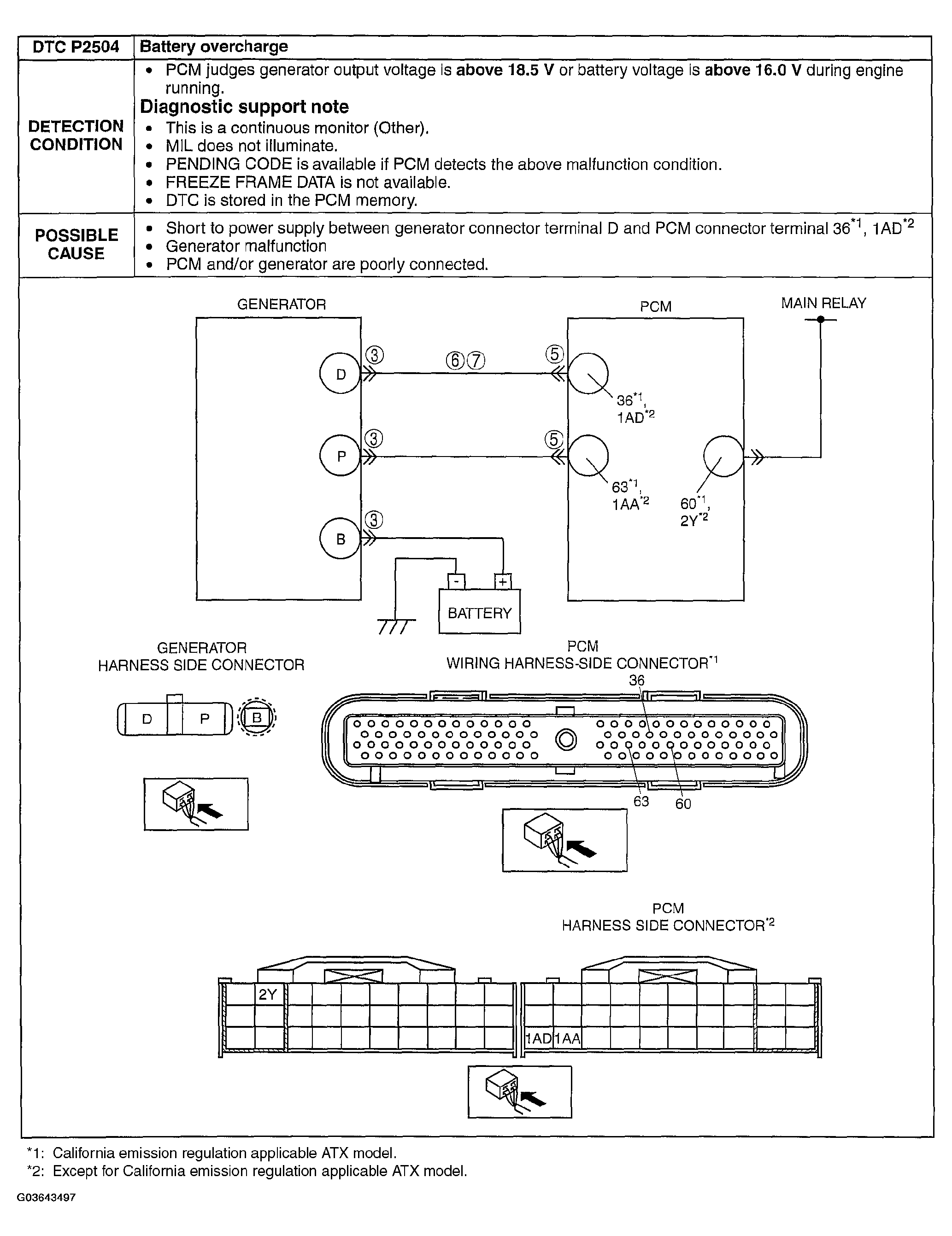

Fig 1: DTC P2504 [L3] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
