On-Board Diagnostic (Engine Control System (L3)
›
Monitoring System And Control System Device Relationship Chart
›
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model

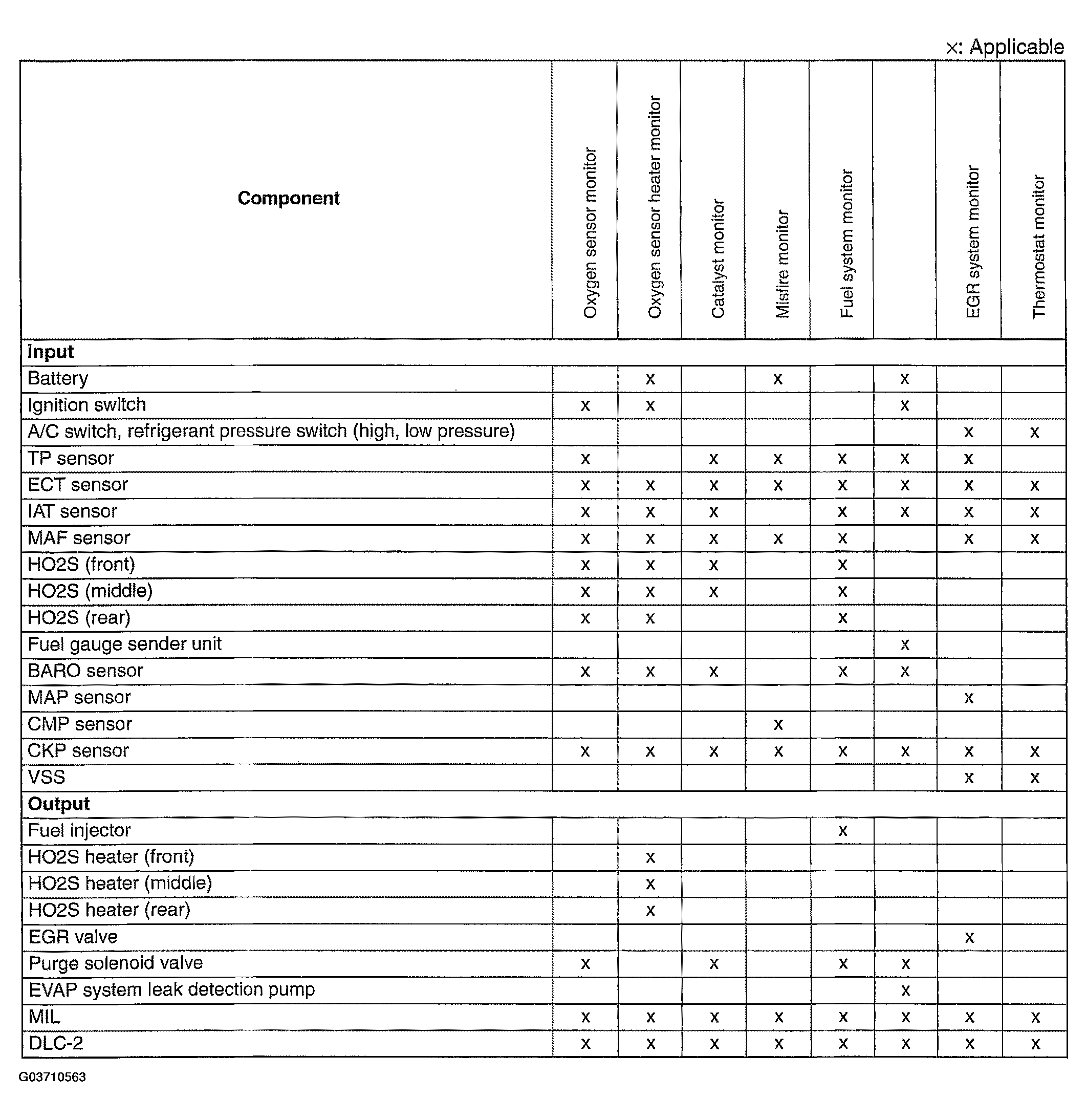

Fig 1: Monitoring System And Control System Device Relationship Chart [L3] (California)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
