Cover Disassembly Note

  1. Pull off the tab A with a screwdriver and press the tab B downward.

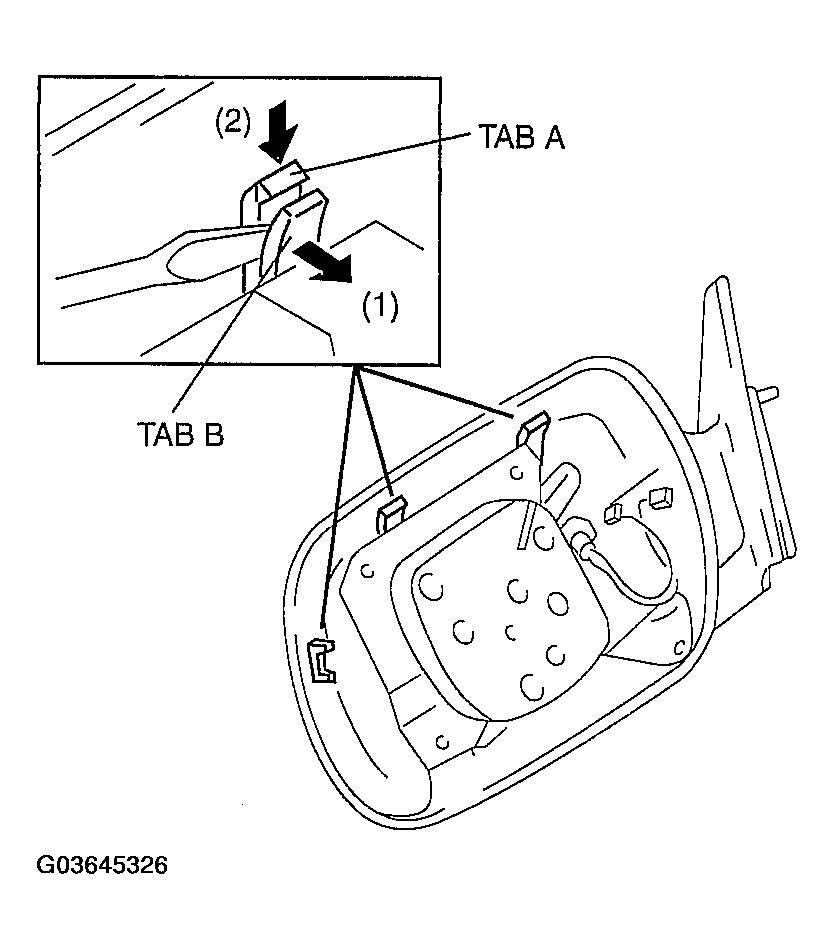

    Fig 1: Pulling Off Tab With Screwdriver And Pressing Tab Downward
    G03645326Courtesy of MAZDA MOTORS CORP.
