Control System Component Location Index

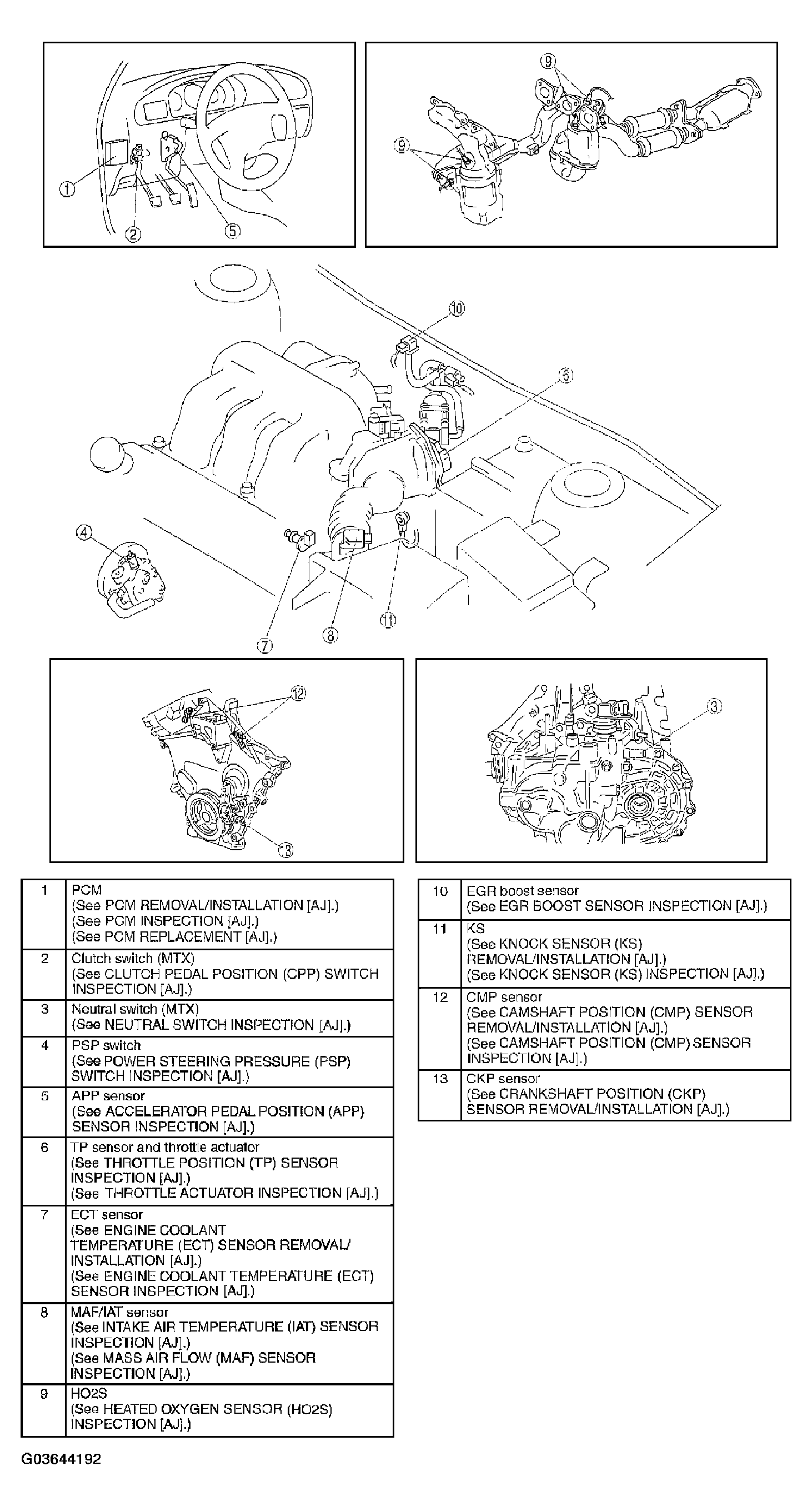

Fig 1: Identifying Control System Component
G03644192Courtesy of MAZDA MOTORS CORP.
