Control System Diagram
Control System Diagram

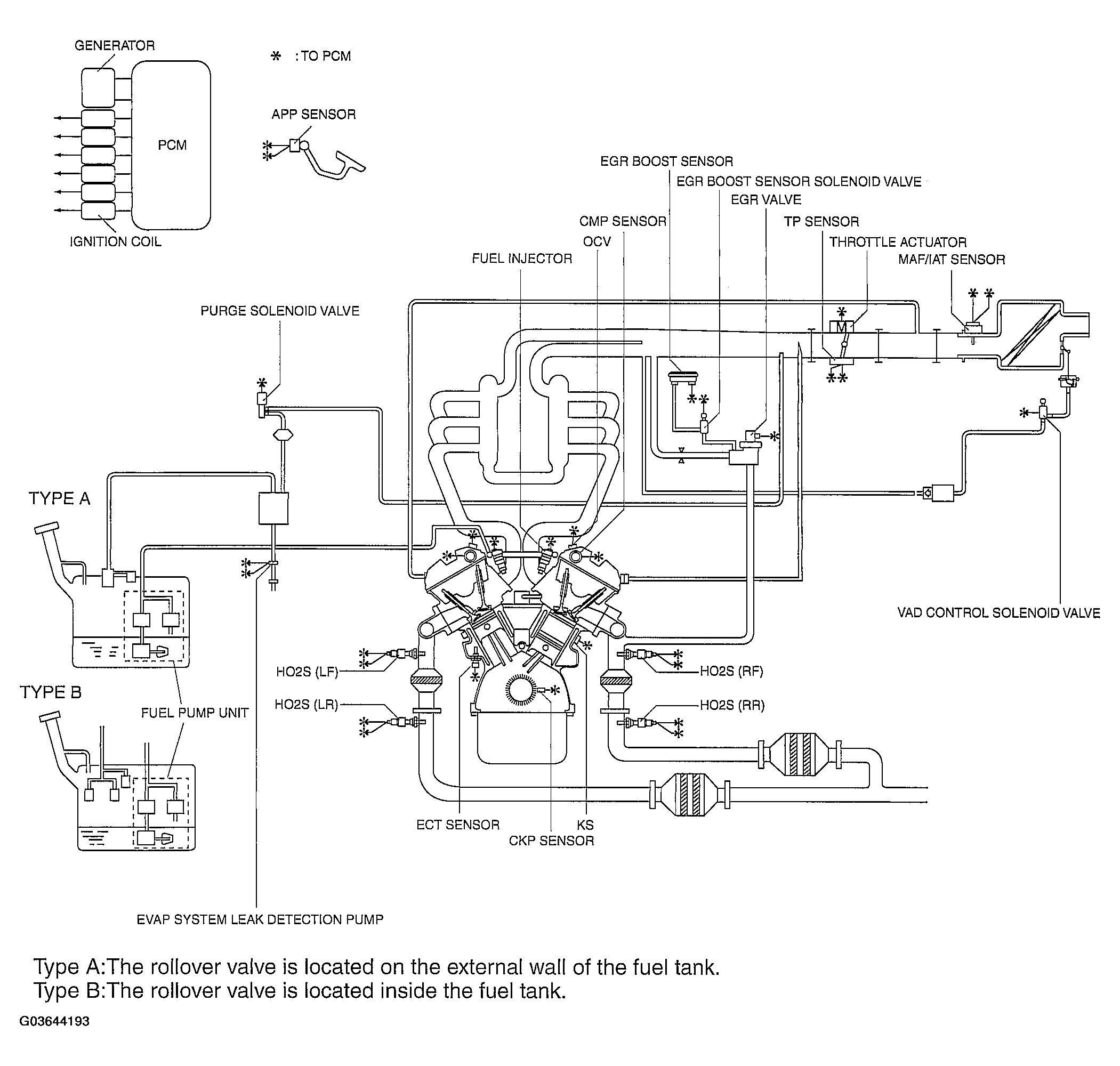

Fig 1: Identifying Control System Diagram [AJ]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
