Control System Wiring Diagram

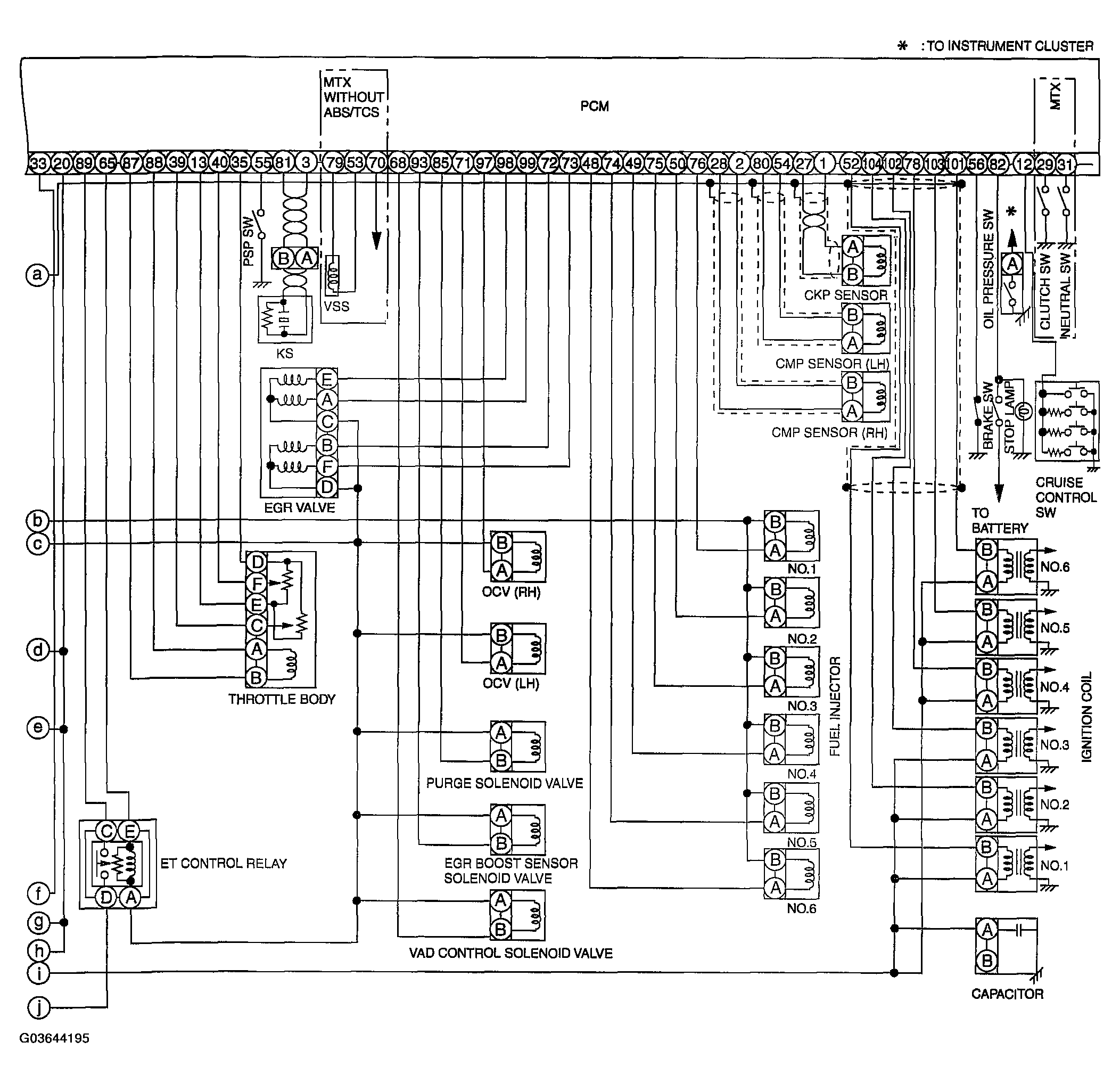

Fig 1: Identifying Control System Wiring Diagram [AJ] (1 of 2)

Courtesy of MAZDA MOTORS CORP.

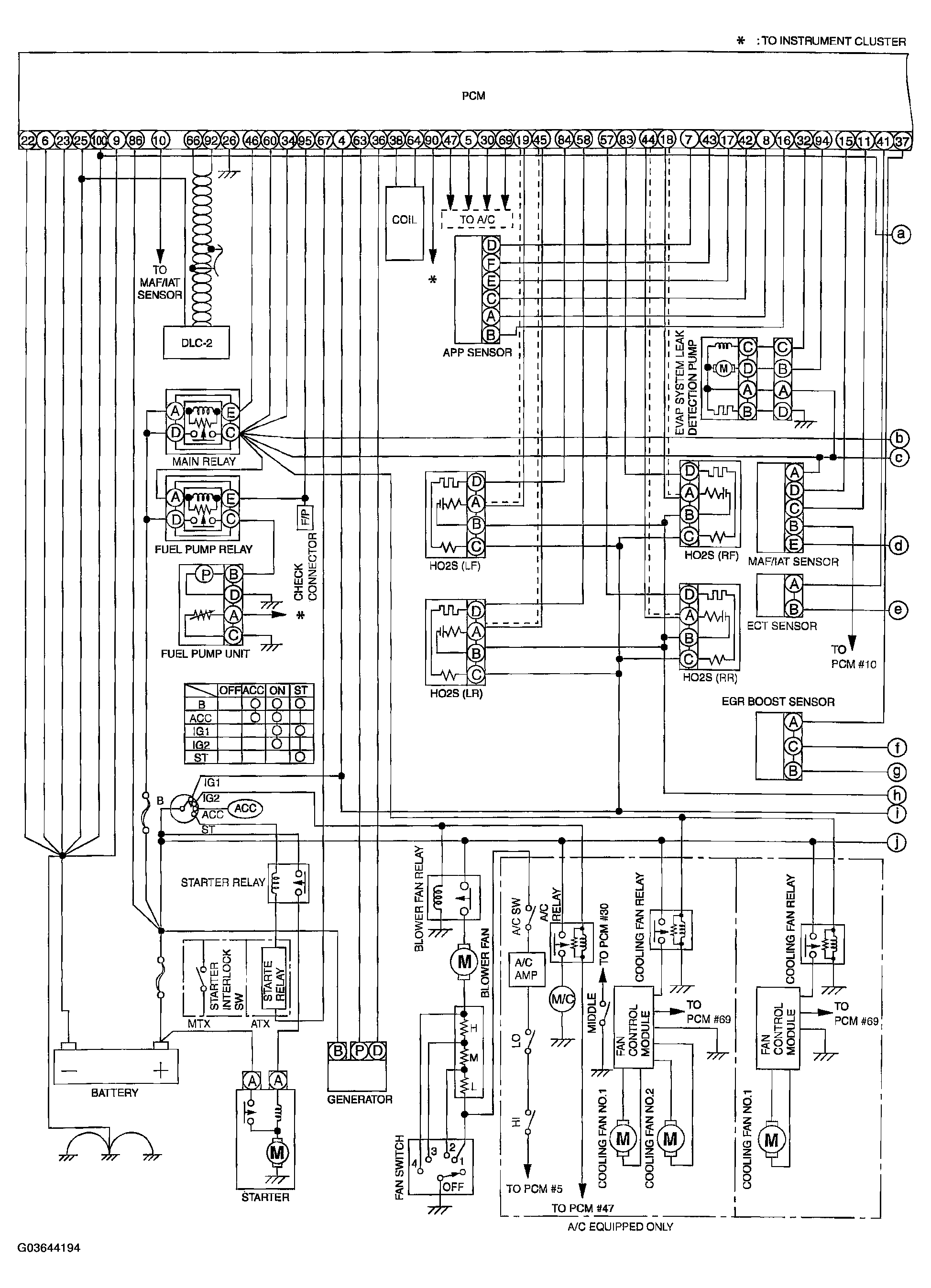

Fig 2: Identifying Control System Wiring Diagram [AJ] (2 of 2)

Courtesy of MAZDA MOTORS CORP.
