Pcm Inspection: Notes

1. Connect the WDS or equivalent to the DLC-2.
2. Turn the ignition switch to ON position.
3. Measure the PID value.
   • If PID value is not within the specification, follow the instructions in Action column.

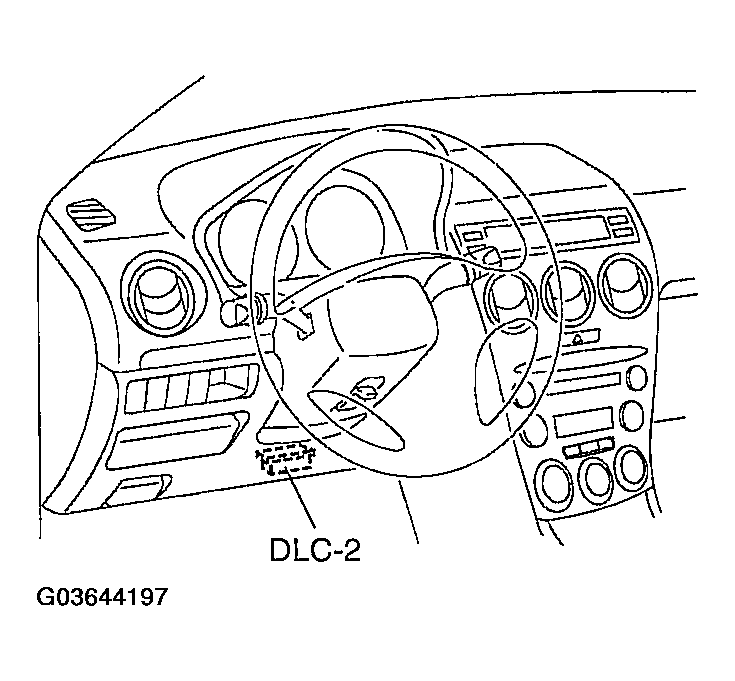

     Fig 1: Locating DLC-2 Connector

     Courtesy of MAZDA MOTORS CORP.
