Circuit Open/Short Inspection: Notes

Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [AJ] .)
Inspect the following wiring harnesses for open or short circuit (continuity check).

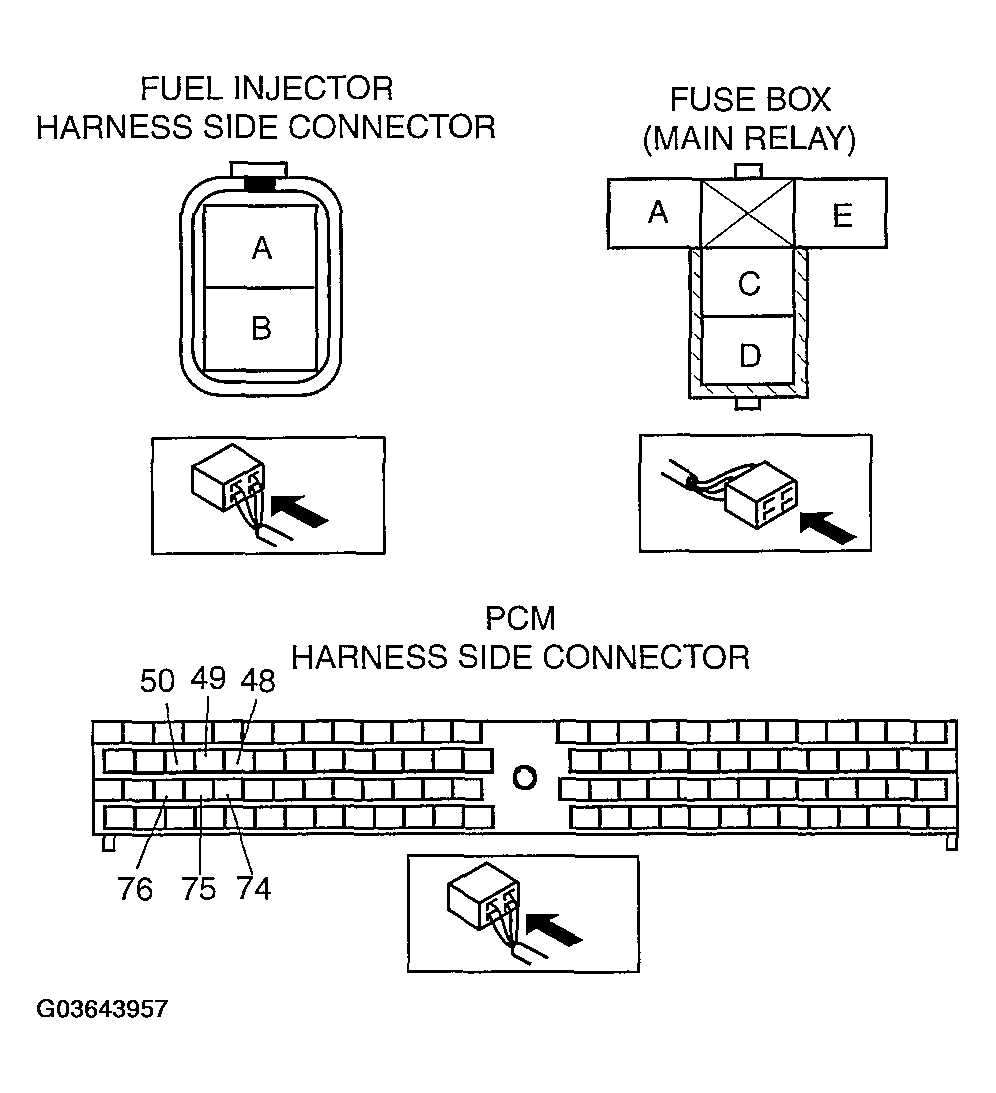

Fig 1: Identifying Connector Terminal
Courtesy of MAZDA MOTORS CORP.
