AJ engine models

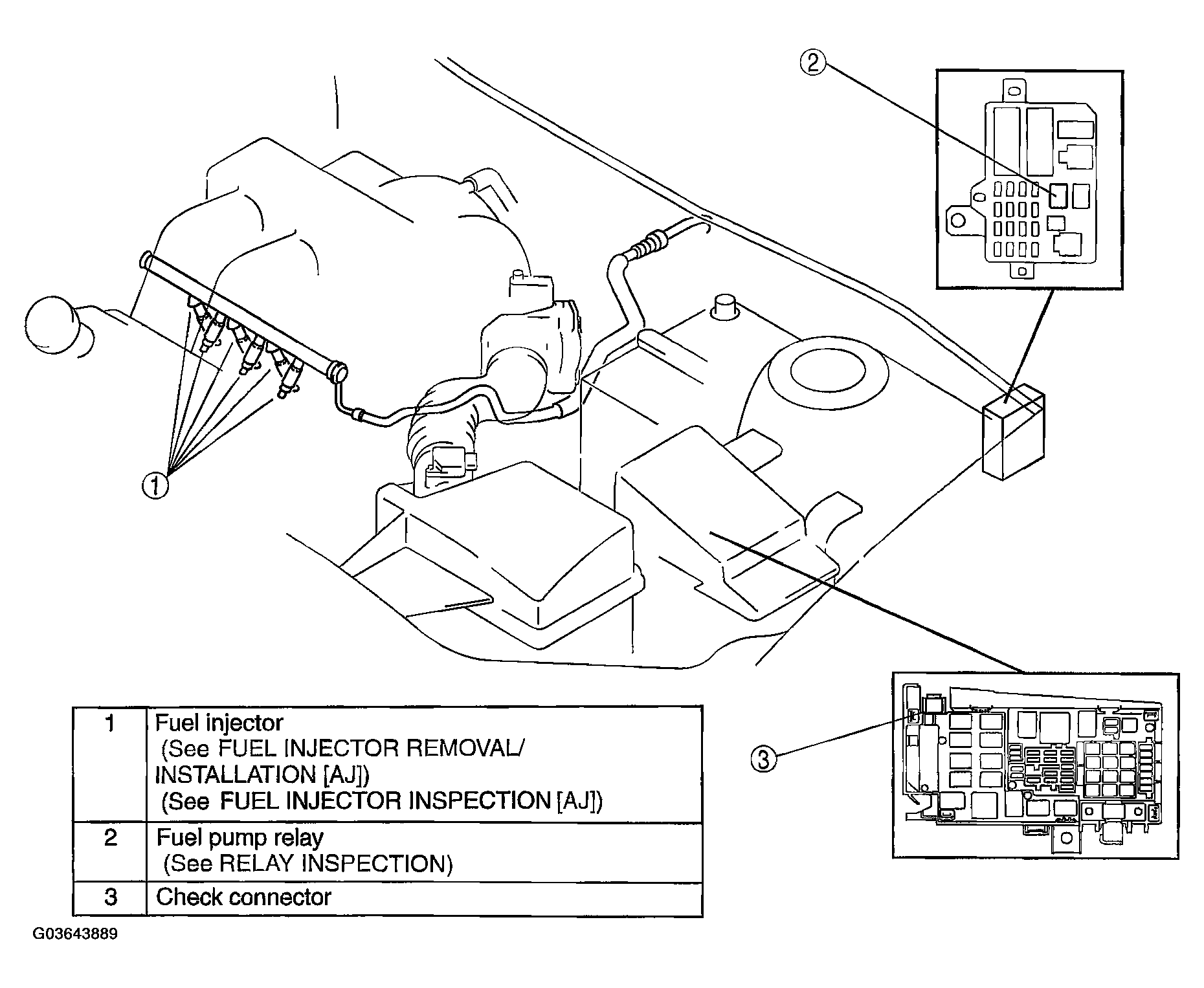

Fig 1: Identifying Fuel Pump Relay (AJ Engine Models)
G03643889Courtesy of MAZDA MOTORS CORP.
