DTC Reading Procedure

Perform the necessary vehicle preparation and visual inspection.
Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
Retrieve DTCs using the WDS or equivalent.

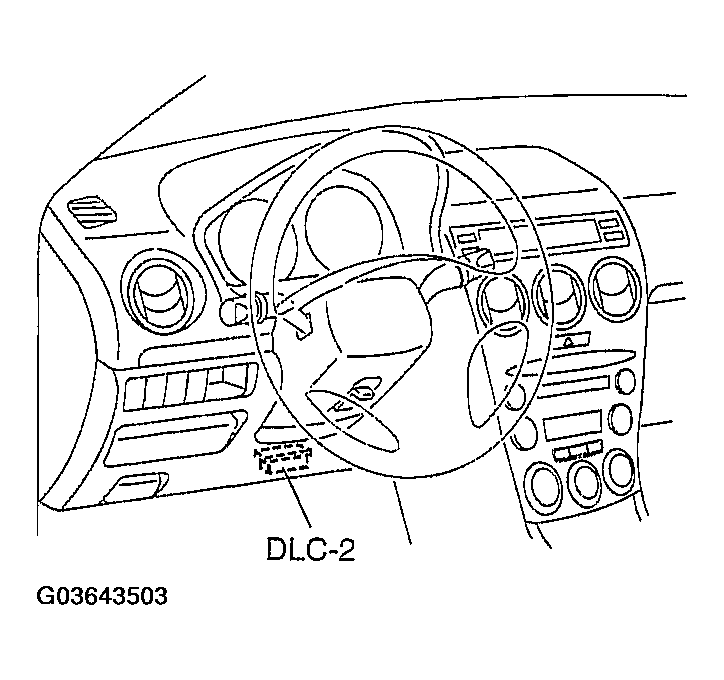

Fig 1: Identifying DLC-2 (DTC Reading Procedure)
Courtesy of MAZDA MOTORS CORP.
