Rear Door Glass Removal/Installation

Fully roll down the rear door glass.
Remove the rear door trim.
Remove the hole cover.
Pull up the rear door weatherstrip and remove the screw.
Remove the bolt.
Remove the glass run channel from the rear door glass guide.

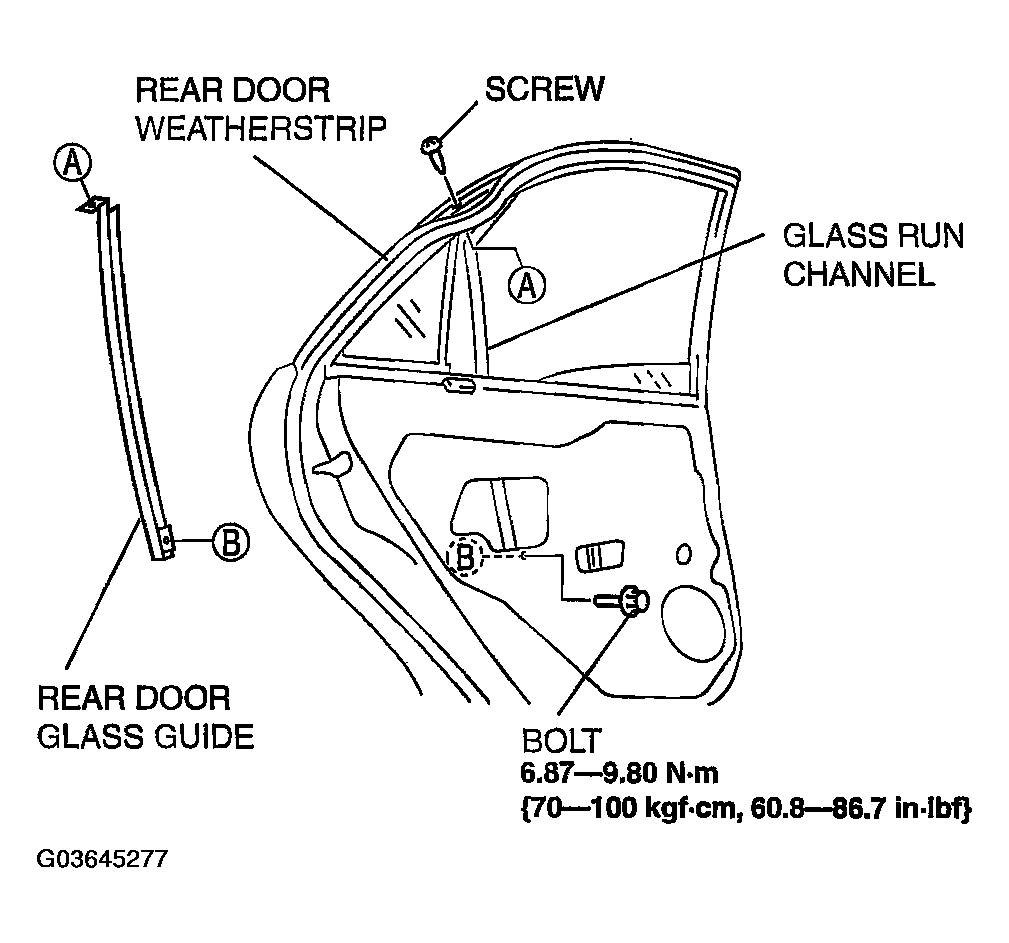

Fig 1: Removing Glass Run Channel From Rear Door Glass Guide (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Lift the rear door glass to the position where the rear door glass installation screw is visible.
Remove the screw.

Fig 2: Removing Rear Door Glass Screw
Courtesy of MAZDA MOTORS CORP.
Lift out the rear door glass.
Install in the reverse order of removal.
