Mazda
›
2005
›
6 s, 4D Hatchback, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic (Engine Control System (AJ)
›
Control System Wiring Diagram
Control System Wiring Diagram

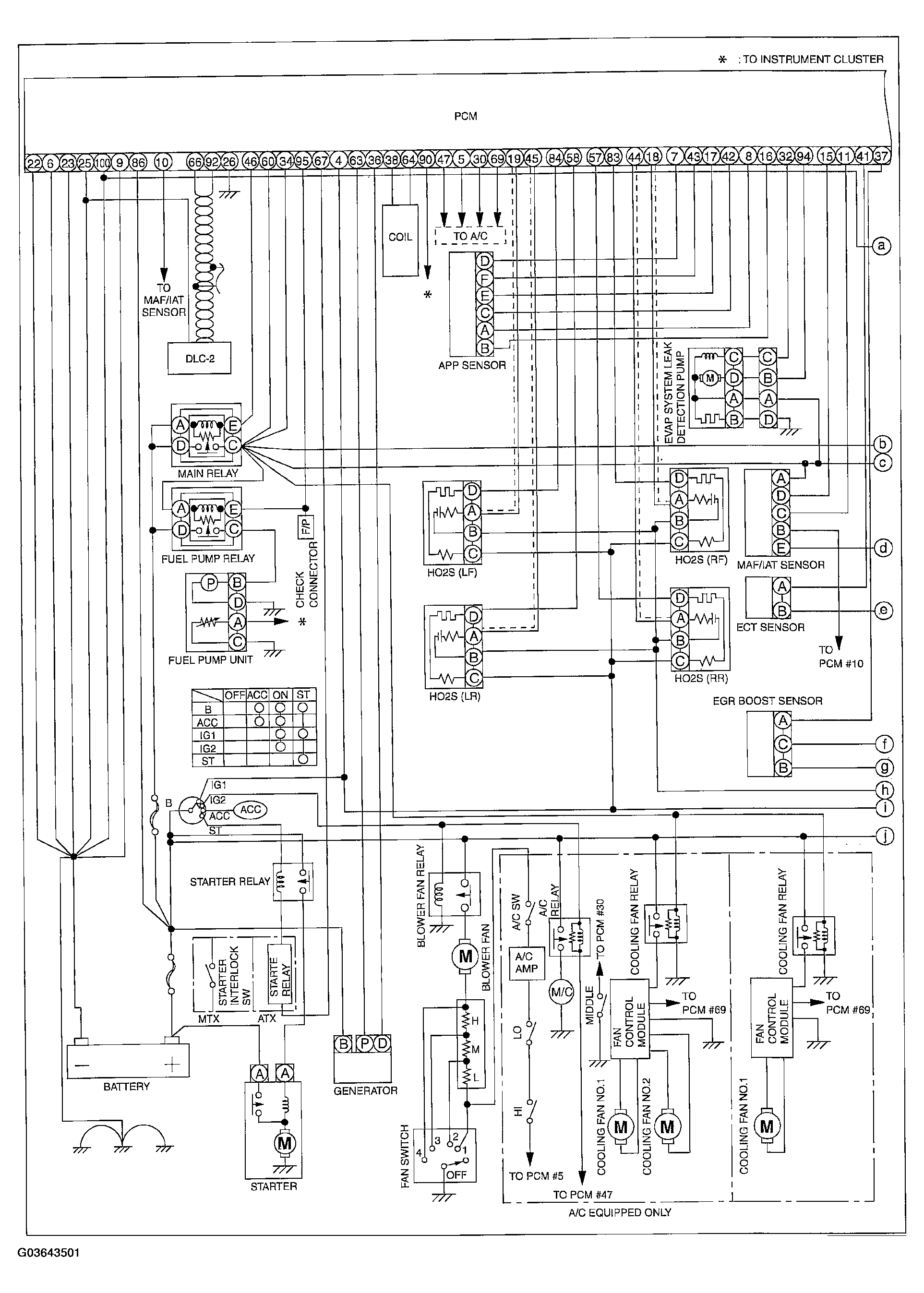

Fig 1: Control System Wiring Diagram [AJ] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

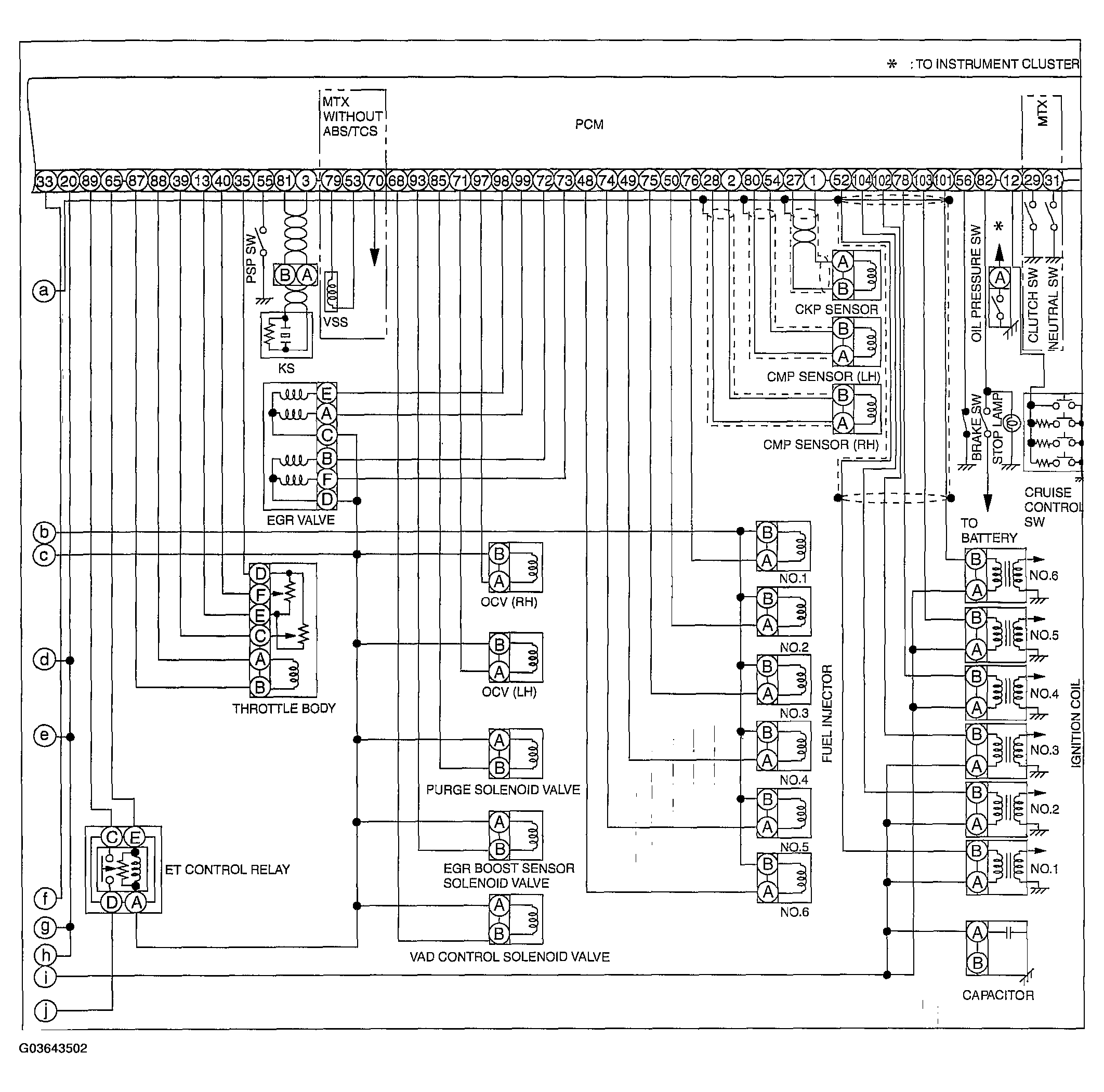

Fig 2: Control System Wiring Diagram [AJ] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
