DTC P0506
›
Notes
DTC P0506: Notes

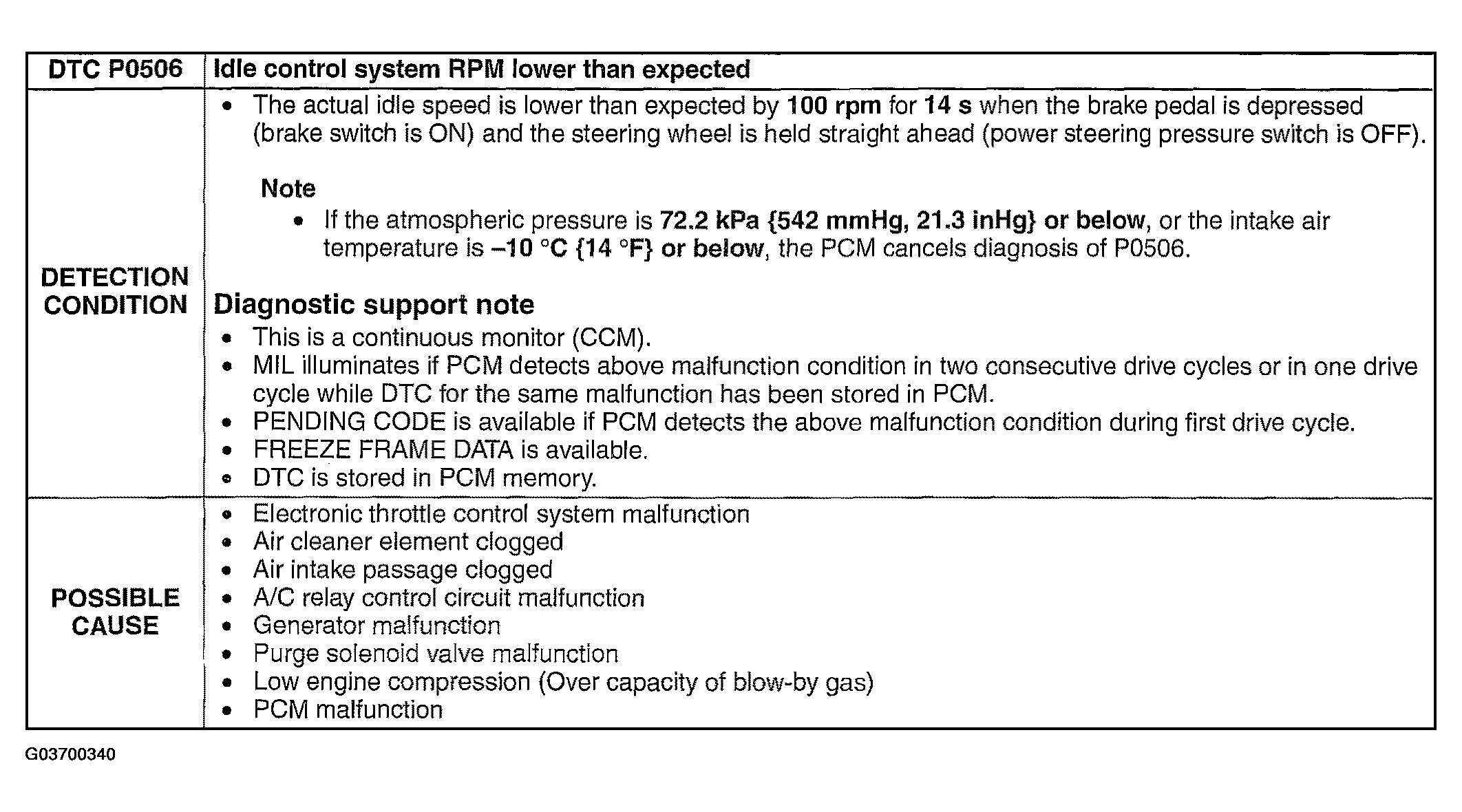

Fig 1: DTC P0506 [AJ] Detection Condition & Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
