DTC P2503
›
Notes
DTC P2503: Notes

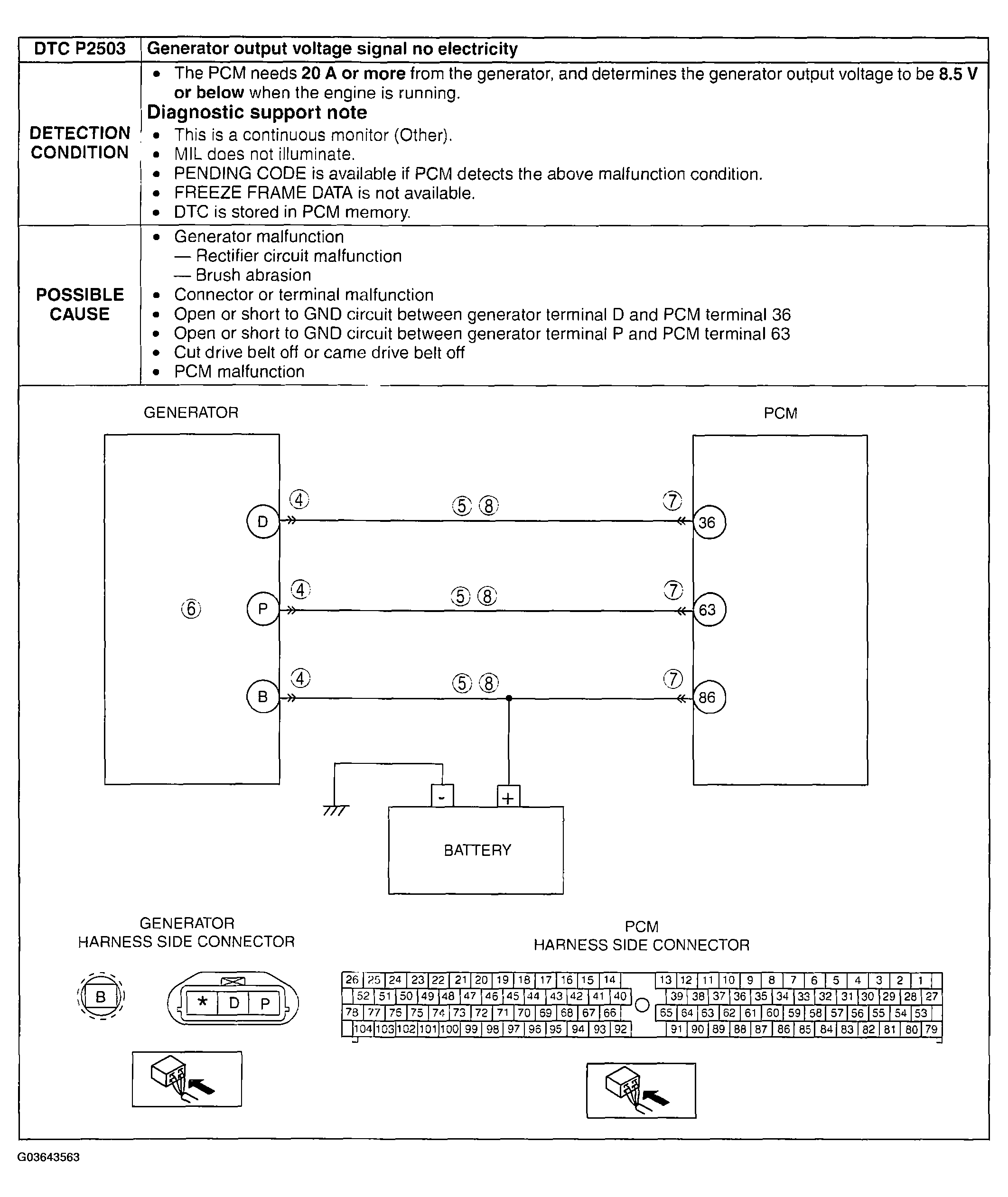

Fig 1: DTC P2503 [AJ] Detection Condition & Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
