Freeze Frame PID Data Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
  3. Record the FREEZE FRAME PID DATA using the WDS or equivalent.

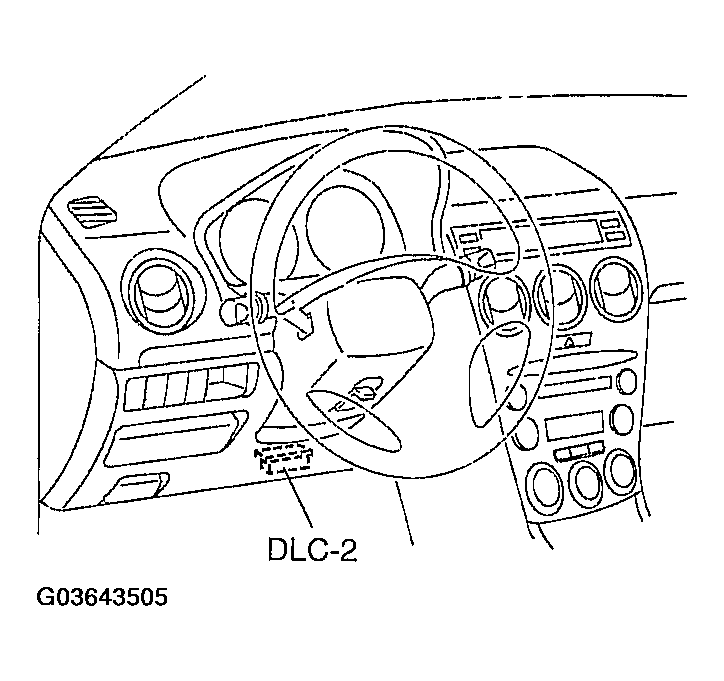

    Fig 1: Identifying DLC-2 (Freeze Frame PID Data Access Procedure)
    G03643505Courtesy of MAZDA MOTORS CORP.
