Pending Trouble Code Access Procedure
- Perform the necessary vehicle preparation and visual inspection.

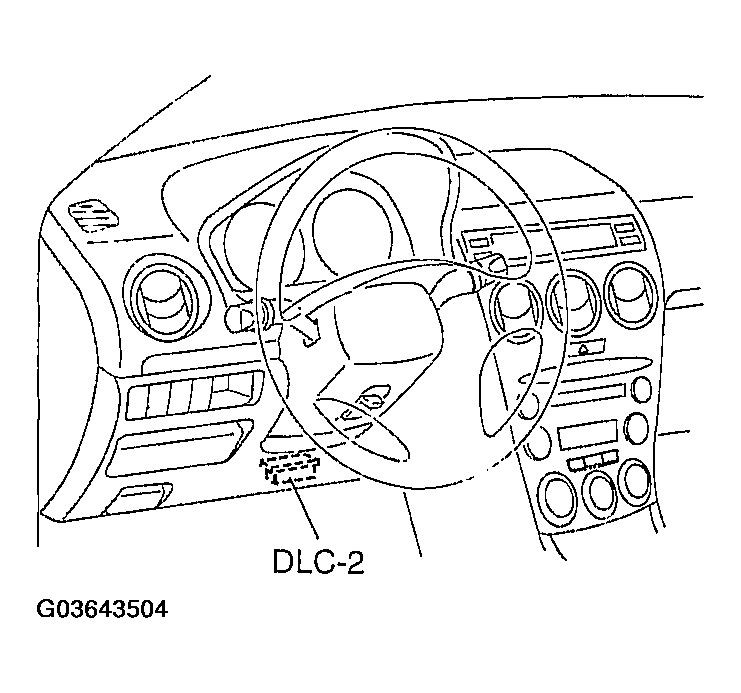

- Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
- Retrieve Pending trouble codes using the WDS or equivalent.
