Front Carrier Component Assembly

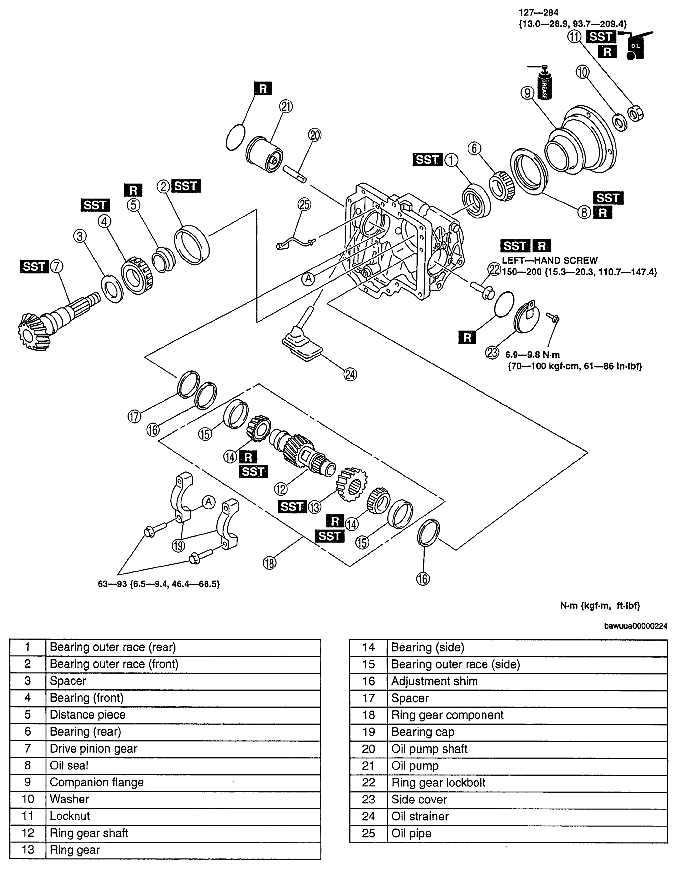

Fig 1: Exploded View Of Front Carrier Component Assembly With Torque Specifications
G04824186Courtesy of MAZDA MOTORS CORP.
