Transfer Component Assembly

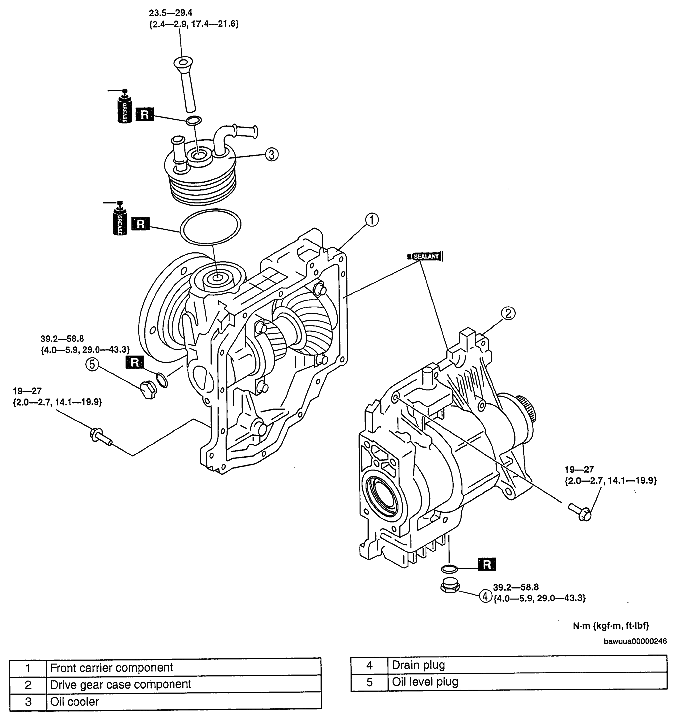

Fig 1: Exploded View Of Transfer Component Assembly With Torque Specifications
G04824209Courtesy of MAZDA MOTORS CORP.
