Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat.
  3. Disconnect the buckle switch connector.

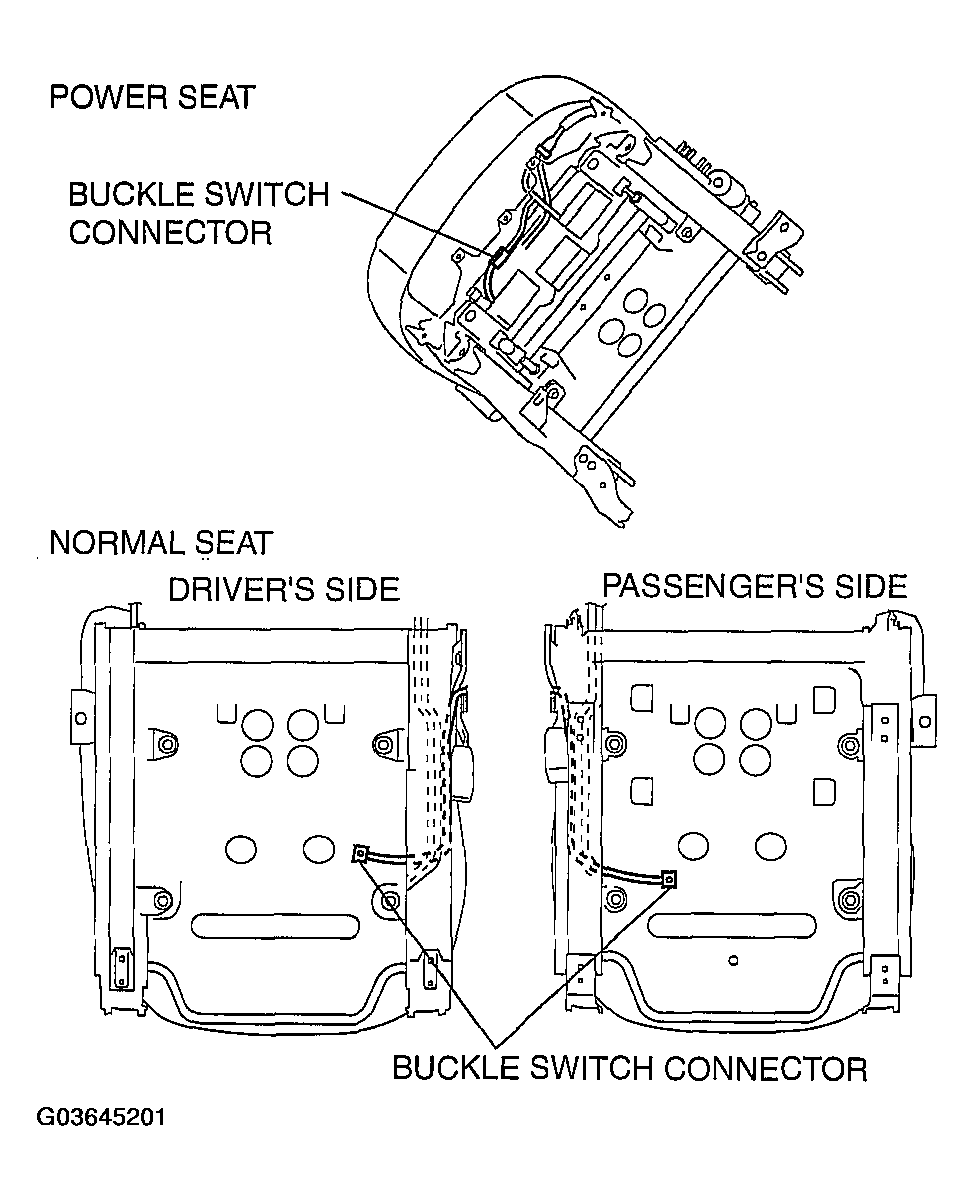

    Fig 1: Disconnecting Buckle Switch Connector
    G03645201Courtesy of MAZDA MOTORS CORP.
  4. Remove bolt.
    Fig 2: Removing Bolt (Torque Specs)
    G03645202Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
