Axle Retainer Bracket Front Removal/Installation

Raise the vehicle on a hoist; see JACKING .
Remove the bushing through-bolt.

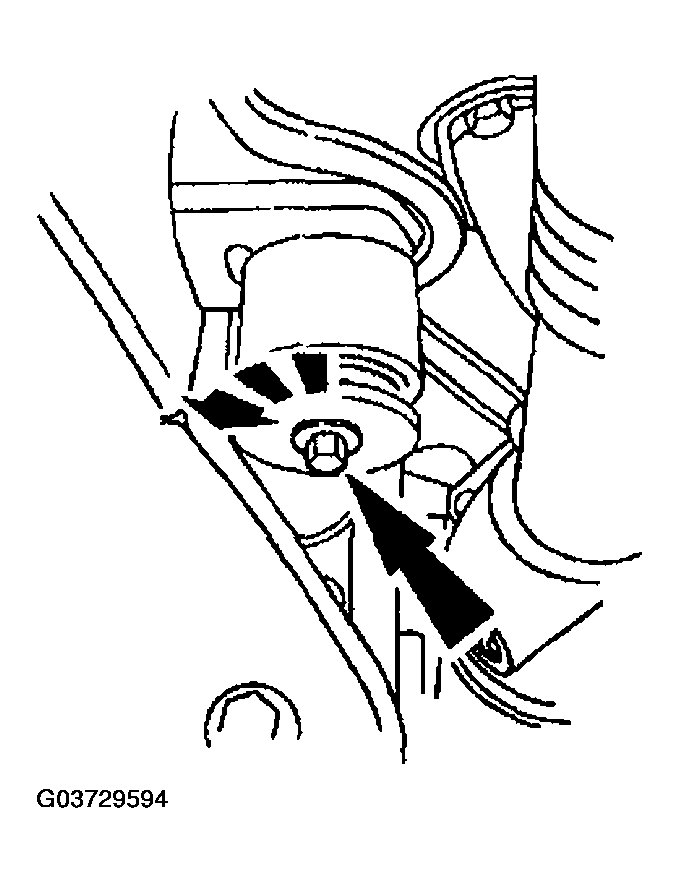

Fig 1: Removing Bushing Through-Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the three retainer bracket bolts.

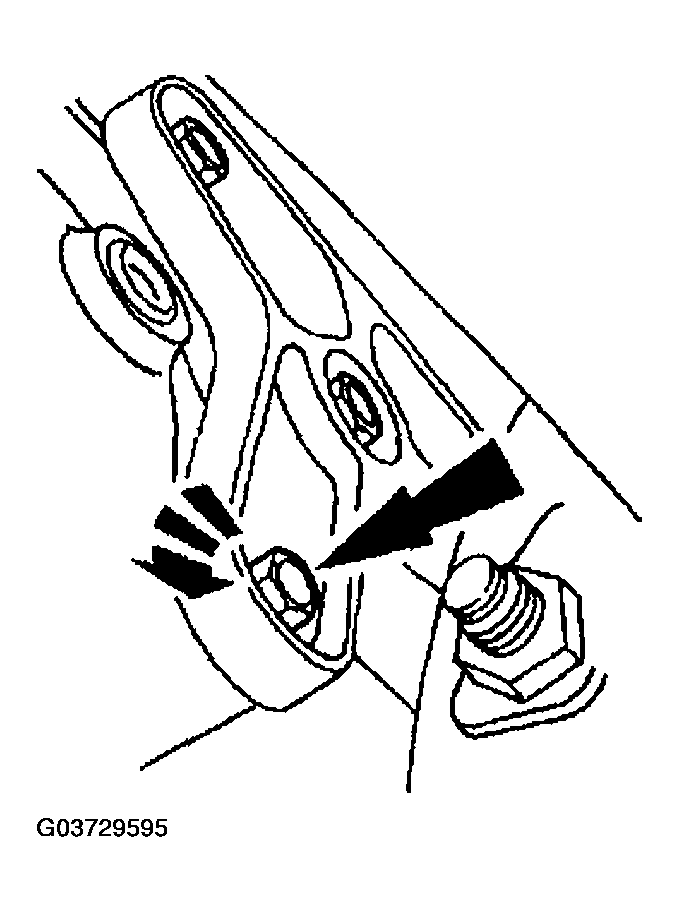

Fig 2: Removing Retainer Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque: Retainer Bracket Bolts 64-91 Nm { 6.5-9.3 kgfm, 47-67 ft.lb. }

Tightening torque: Bushing Through Bolt 60-80 Nm { 6.1-8.2 kgfm, 45-59 ft.lb. }
