Installation Note

Use the Axle Bearing/Seal Installer SST 49 UN01 028 and Driver Handle SST 49-F027-003 to replace the RH axle tube bearing.

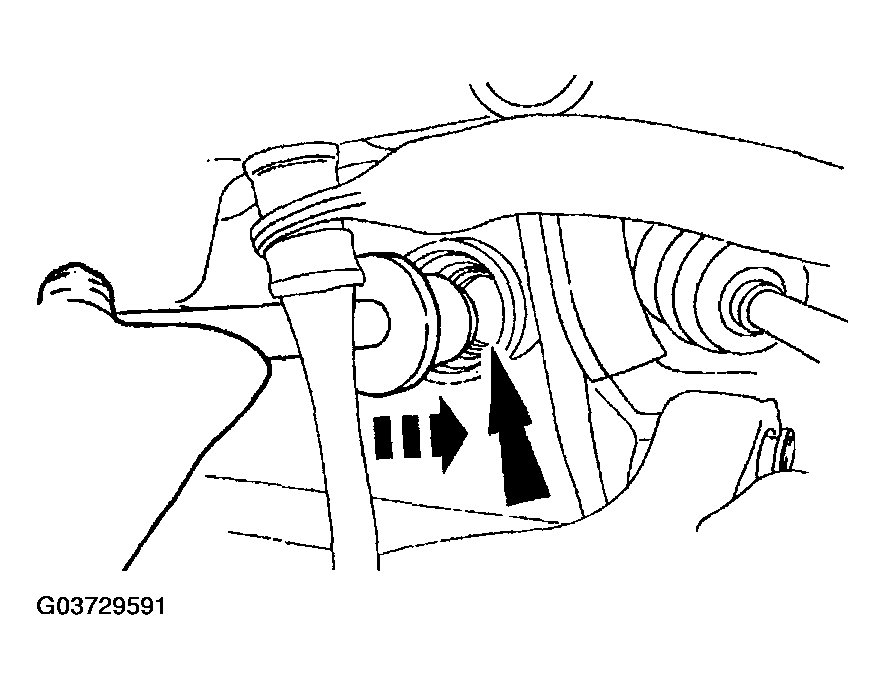

Fig 1: Replacing RH Axle Tube Bearing
Courtesy of MAZDA MOTORS CORP.
Set bearing depth as shown.

Fig 2: Setting Bearing Depth
Courtesy of MAZDA MOTORS CORP.
Use the Axle Bearing/Seal Installer SST 49 UN01 028 and Driver Handle SST 49-F027-003 to replace the axle seal.
CAUTION:
- Care should be taken not to damage the axle seal surface.

  Fig 3: Installing Axle Seal
  Courtesy of MAZDA MOTORS CORP.
Install the axle shaft.
Refill the front drive axle to proper level using axle lubricant meeting specification API Service GL-5.
Install the RH driveshaft; see DRIVE SHAFT, FRONT AXLE REMOVAL/INSTALLATION .
