Generator Pulley Removal/Installation

  1. Remove the generator. See GENERATOR REMOVAL/INSTALLATION - 2.3L  or GENERATOR REMOVAL/INSTALLATION - 3.0L, 4.0L
  2. Remove the nut (1) and generator pulley (2).

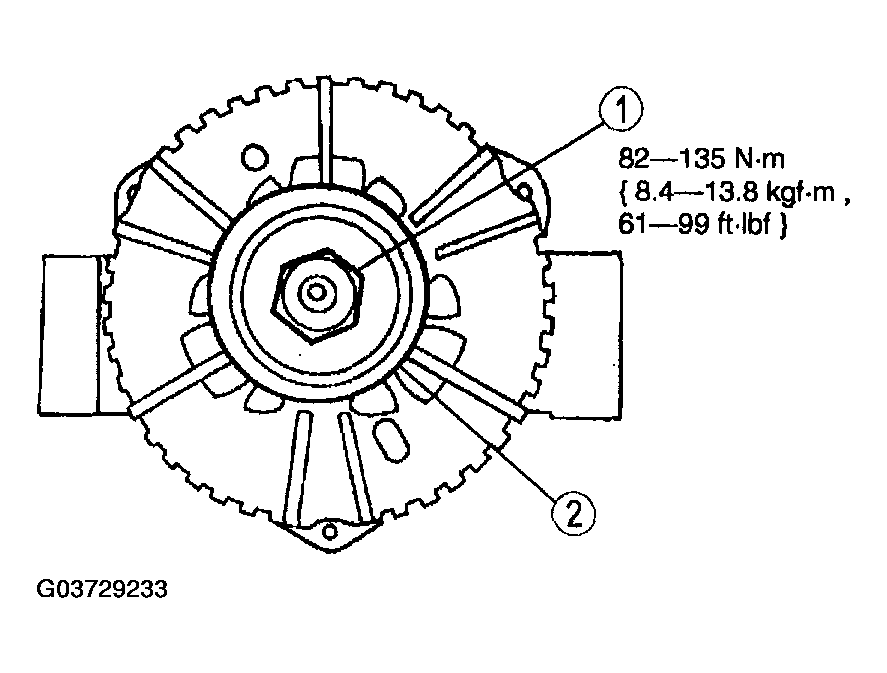

    Fig 1: Removing Nut And Generator Pulley - With Torque Specification
    G03729233Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
