Horn Switch Removal/Installation
- Remove the driver-side air bag module. See DRIVER AIR BAG MODULE REMOVAL/INSTALLATION .

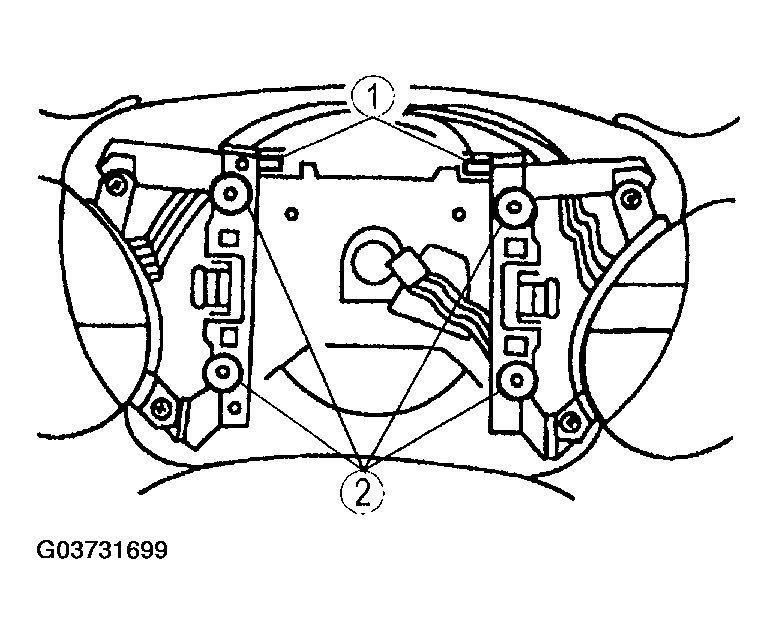

- Disconnect the horn wire from the switches (1).
- Remove the horn switch screws and remove the switches (2).
- Install in the reverse order of removal.
Tightening torque 6.5-7.5 N.m { 66-76 kgf.cm, 58-66 in.lbf }
- Prove out the air bag system. See AIR BAG SYSTEM ON - BOARD DIAGNOSIS .
