Instrument Cluster Printed Circuit Removal/Installation

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
  2. Remove the illumination and indicator bulbs. See INDICATOR/WARNING BULB REMOVAL/INSTALLATION .
  3. Remove the gauges. See INSTRUMENT CLUSTER GAUGES REMOVAL/INSTALLATION .
    NOTE:
    • Do not reuse instrument gauge clips.
  4. Remove the instrument gauge clips.
  5. Remove the instrument cluster printed circuit.

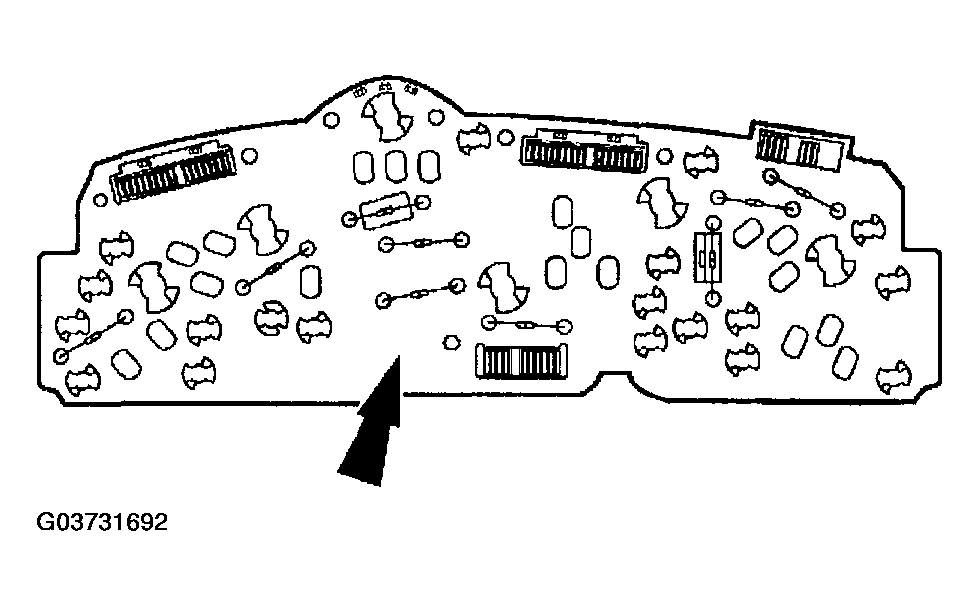

    Fig 1: Identifying Instrument Cluster Printed Circuit
    G03731692Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
