Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

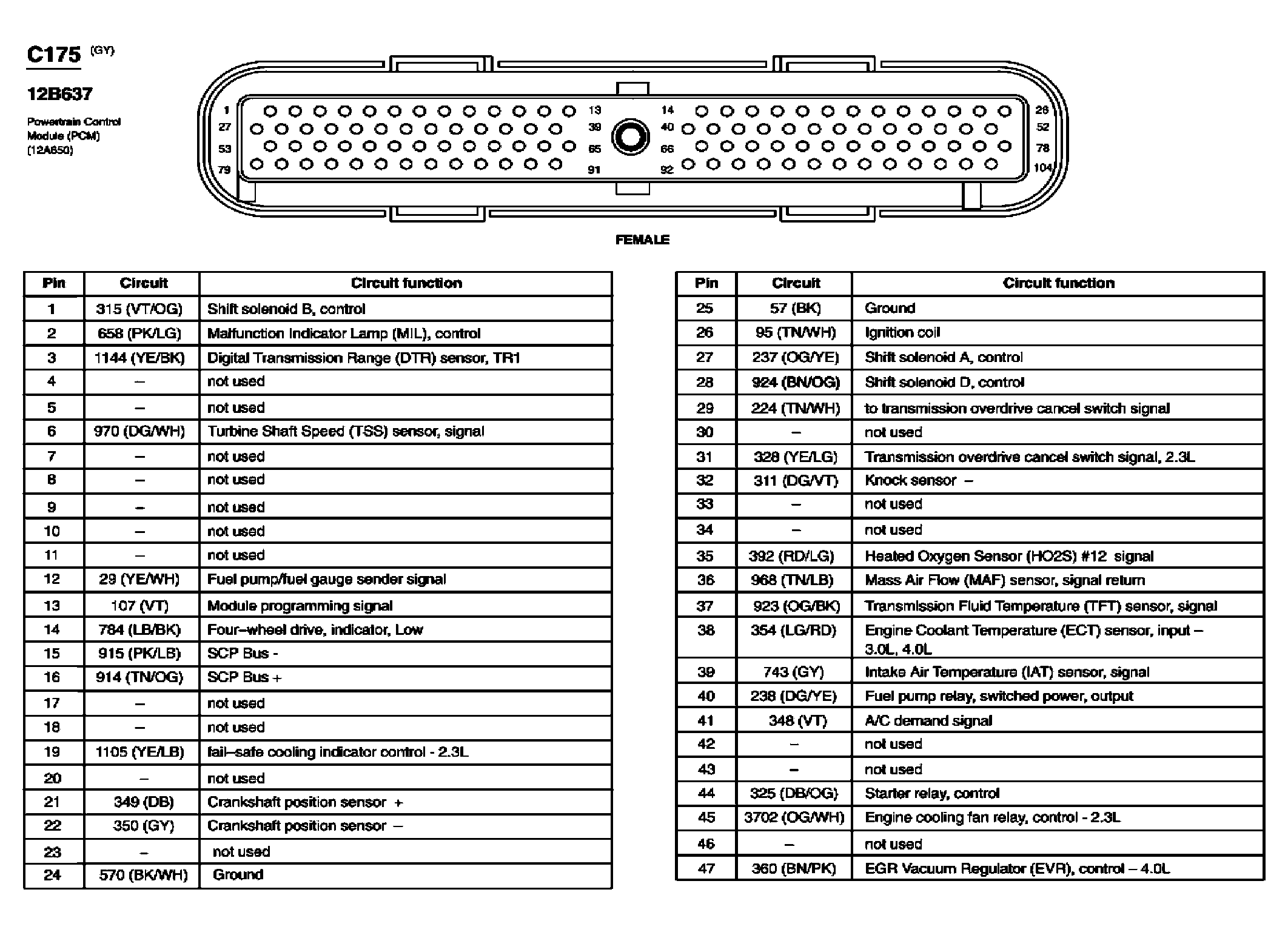

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G03987999Courtesy of FORD MOTOR CO.
