Speaker Front Removal/Installation
- Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .

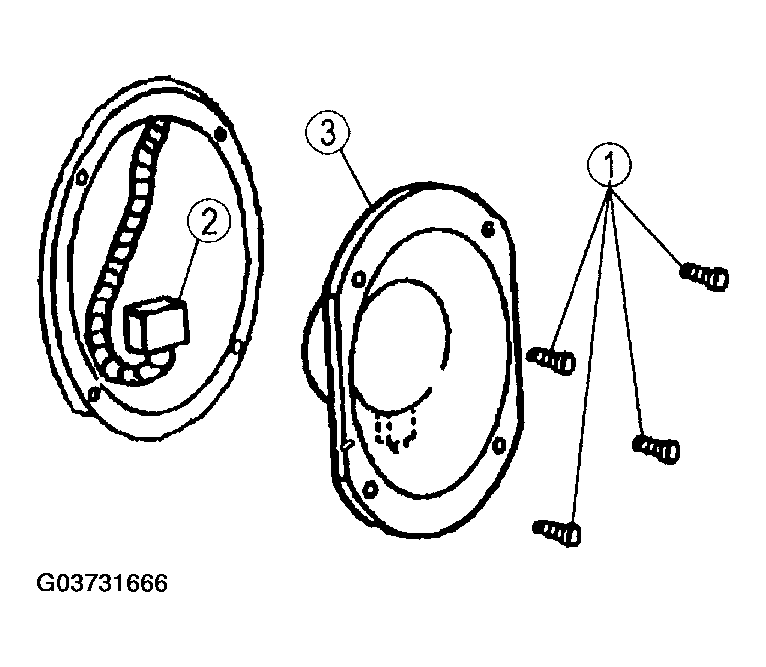

- Remove in order shown in figure.
- Screws
- Connector
- Speaker
- Install in reverse order of removal.
Tightening torque
2 N.m { 20 kgf.cm, 18 in.lbf}
